This interface is connected to a computer, tablet or smartphone (computing device) using a USB-C port labeled “USB”. This connection facilitates digital communication and supplies power to the Digirig.

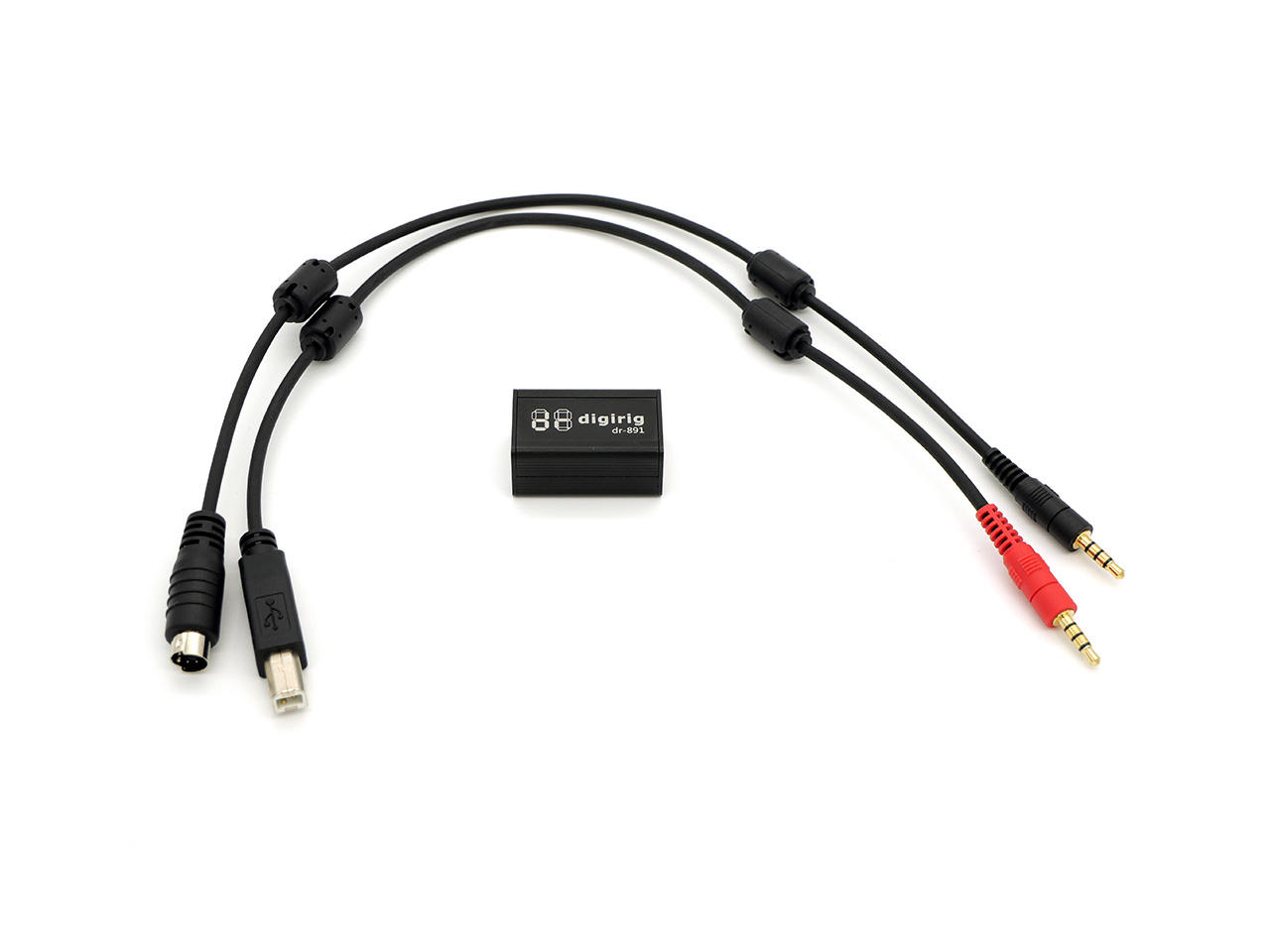

Use included color-coded transceiver side cables to connect Digirig to your FT-891:
- The 3.5mm TRRS jack with black molding is plugged into Digirig’s black socket labeled “audio”. On the transceiver’s side plug the connector into the MiniDin6 socket making sure you align the key to avoid damage. This connection facilitates ground connection, audio from the radio, audio to the radio and hardware PTT control line.
- The 3.5mm TRRS jack with red molding is connected into Digirig’s colored socket labeled “USB”. On the transceiver side plug the connector into the USB-B socket aligning the chamfered sides. This is the pass-through USB connection for the USB-to-serial bridge inside of FT-891 which is used for the CAT control.
- A coiled USB-A to USB-C cable for connecting the Digirig module to your computer or tablet.
Click Here For Setup Instructions:
https://digirig.net/digirig-dr-891-setup-manual/
