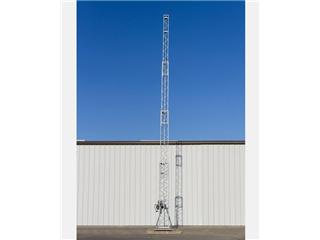

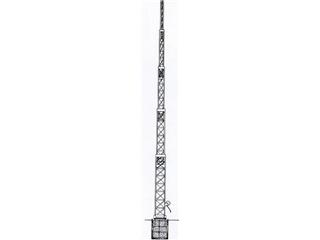

US Tower's latest design includes the compact TMM Series towers giving Hams in restricted areas an alternative.
The TMM Series has a minimm retracted height of 12'3" (may vary, depending on rotor used) and a maximum height of 47' including mast.
At the towers' retracted height, visual impact is reducted to a minimum and antenna servicing is made easier. Typically the tower and antenna are below the roof line of your home when the tower is fully retracted.
The TMM Series towers are lightweight, freestanding crank-up towers that allow up to 18 sq. feet of antenna in 50 mph winds per EIA specifications. The TMM-433HM offers 24 sq. feet.
These lightweight towers should provide many years of trouble free service.
All US Towers have a hot dipped galvanized finish inside and out. The Tmm-433SS and 541SS have a 10" top section which will permit installation of most Alliance and other similar sized rotors inside the top section. Oversized rotors will prevent full retraction of your tower however they may be used if full retraction is not required. This restriction is dependent on location of rotor plate.
INCLUDES:
- All TMM series towers come assembled with a hand-winch, mounted rotor plate, and a eight foot mast.
REQUIRED:

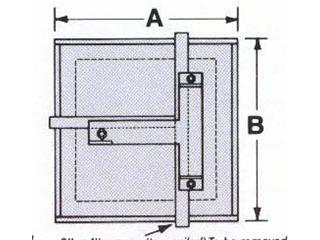

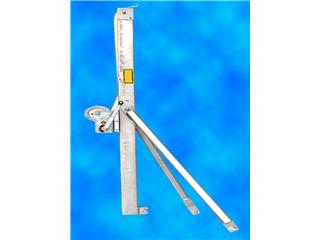

- All TMM Series towers require anchor bolts, rotor plate, hinged T-base
- Purchase the following: Base Kit 4900-003 listed as an accessory below

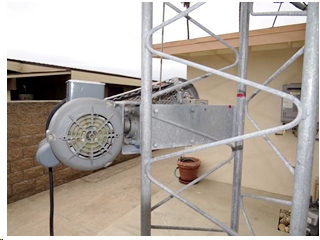

The TMM-433SS will accept the MD-75 motor drive accessory.

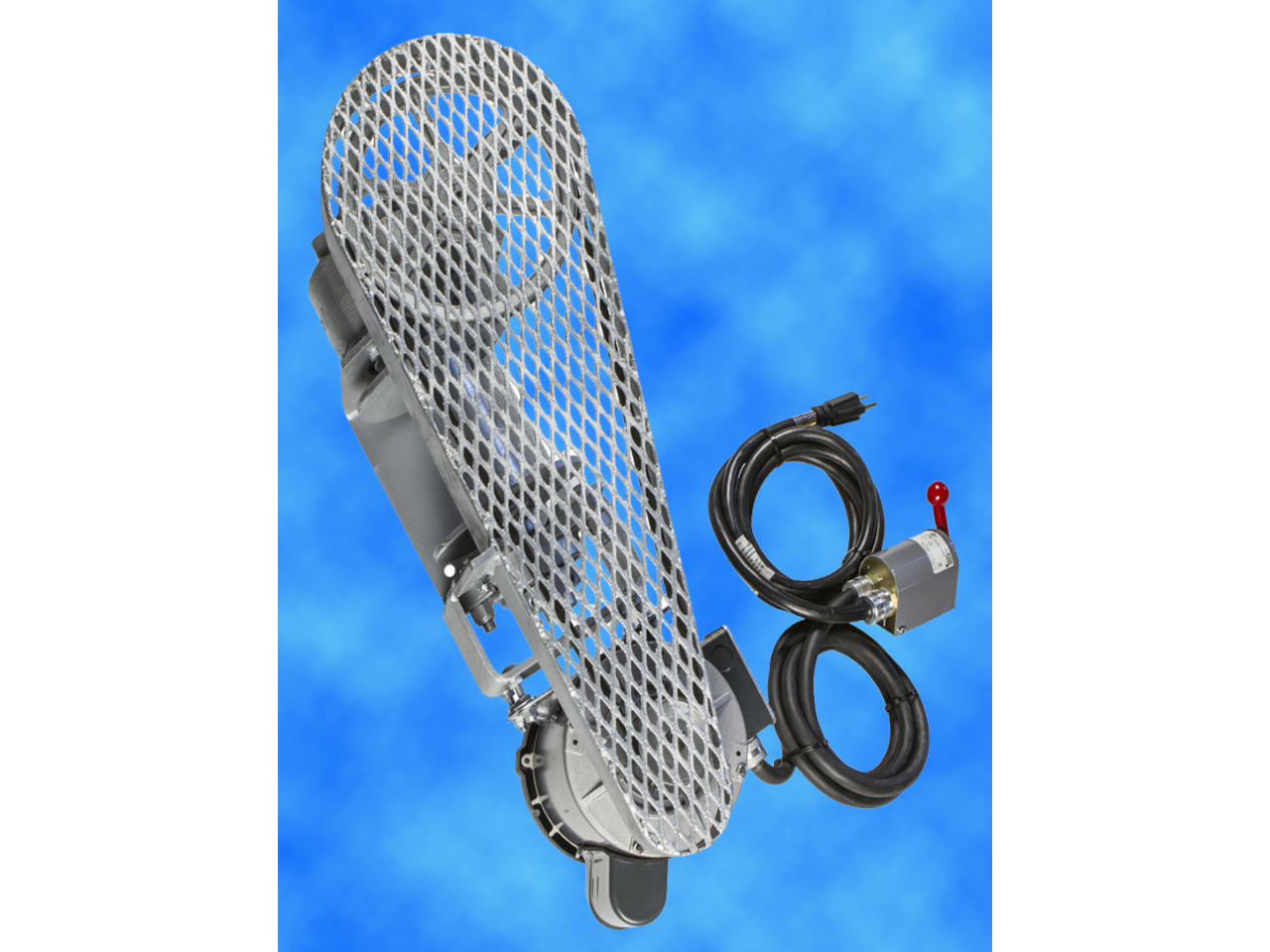

The TMM-433HM and 541-SS will accept the MD-75 and MDP-750 accessory motor drives. The MDP-750 motor drive accessory is compatable with both of our MCL-100 and RMC-1000 limit switch packages.
This item must be delivered by truck freight, truck freight charges will apply.
Typical lead times for delivery range from 8-16 weeks.
