JT Communications TML-1 99 MEM

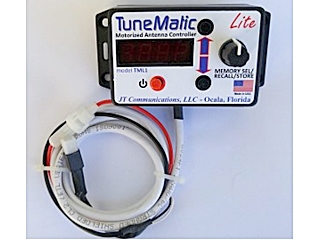

TuneMatic Lite is a self-contained, motorized antenna controller that stores and recalls up to 99 presets, based on user input. Antenna position is moved manually or automatically from memory, with extremely repeatable accuracy .

Features:

• Supports any pulse counting antenna
• Up to 99 non-volatile memories to store and recall
• Memories accessed with a single rotary encoder/switch
• Adjustable current limit set with internal DIP switches (current limit setting range: 200-1900 mA, displayed guess-free on power-up
• 2 speed motor control in manual movement, for easy fine-tuning of antenna; motor control uses dynamic braking for dead-stopping of antenna
• Logic controlled pulse measurement for accuracy; provides accurate pulse counting capability up to 9998 counts
• Large 4 full digit 0.5”H x 1.5”W bright red LED display (LED displays memory, pulse count, and system messages
• Antenna ‘park’ feature, re-calibrates pulse count upon parking antenna
• Antenna polarity reversal selector, in case motor is wired backwards
• Missing pulse detection, stops movement when no pulses are detected on timeout
• Fused, filtered, polarity protected operation from 12v DC power source
• RFI protected antenna control lines
• Combined power and motor cable in single 3’ cord length, allows concealment of connections
• Compact, dashboard-sized enclosure (2.25”h x 4.25”w x 1.5”d) with mounting tabs on flush back

Controls:

• Power on/off electronic pushbutton
• UP/DOWN direction buttons
• Memory knob/push selector– selects memory and stores/tunes memories

Connections:

• Red & Black fused power leads
• 4-wire Motor control cable, pre-wired for TarHeel antennas
