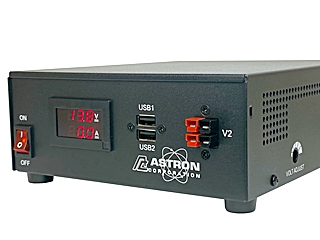

ASTRON SS-30M-AP

Key Features:

• Connectors: [AC] IEC320-C14, [DC] 2 USB ports, 2 Anderson Power Pole ports, 1x2-Wire Terminals Rear panel port.
• Digital Displays: Front Panel numeric LED, 1 DC Volt meter and 1 Amp meter, Illuminated ON/OFF switch.
• Adjustable Voltage: 13.8 VDC ±1V, User manual control.
• Technology: >82% efficiency switching, PFC, specific filtering for communication equipment all frequencies and HF.
• EMI: Built-in EMI filter meets EMI Standards, EN55022/CISPR 22 (Class-B), FCC Part15 (Class-B), EN55024,
  EN61000-3-2 (Class-D) , EN61000-3-3 (Harmonic) IEC61000-4-2,4,5 (EMS).
• Protections Built-in: Current Limiting, Overvoltage protection, Fuse protection, Over Temperature shutdown.
• Construction: Low profile, light weight and industrial metal case quality. Optional rack-mount front panel is available.
• Safety: Certified to UL/CUL/EN/IEC 62368-1 standards.
• Environmental: Certified to Energy Star and CEC standards where required, and RoHS (lead free) compliant.

Applications:

Communications Equipment - A Critical Power Solution:

• The SS-30M model supports currents up to 25A avg and peak up to 30A ICS (*) peak max. It is ideally suited for use with 12/13.8 VDC communications equipment. Switching technology >82% efficient meets individual power loading requirements. Included is special filter circuitry especially suited for all communications frequencies and HF.

Built-in Protection Features:

• Several protection features are built-in. Included are output current limiting, overvoltage protection, internal fuse protection, and over temperature shutdown.

Easy Installation, Safety and Reliability:

• Integration is seamless with standard 12/13.8 VDC equipment. Front panel 'Anderson Power Pole; terminals and rear panel screw-wire terminals are heavy duty. Connectors are easy accessible which ensures safe and reliable installation.

Specifications:

• INPUT VOLTAGE: 120 to 230 VAC, 50/60Hz (Nominal Automatic Wide-Range selected)
• OUTPUT VOLTAGES: 13.8 VDC (User manual adjustable ± 1 V) / 13.8 VDC (User manual adjustable ± 1 V)
• OUTPUT CURRENT: 30A peak current - ICS Intermittent Communication Service (*)
• TEMPERATURE: 0 to +50ºC Operating, –20 to +85ºC Storage / 120ºC max over-temperature setting
• HUMIDITY: 5 to 90% RH Operating, 5 to 95% RH Storage (Non-condensing)
