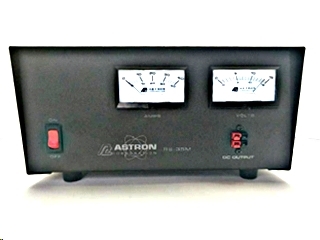

ASTRON RS-50M-AP

ASTRON RS-50M-AP

11 - 15 Volts DC Linear Power Supply 37 Amps Cont 50 Amps ICS with Meters

HRO Discount Price: $439.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
Anaheim, CA
Atlanta, GA
Denver, CO
Milwaukee, WI
New Castle, DE
Phoenix, AZ
Plano, TX
Portland, OR
Sacramento, CA
Salem, NH
Winter Springs, FL
Woodbridge, VA
RS-50M-AP Description     Hide

Specifications:

  • CONTINUOUS DUTY: 37 Amps

  • ICS*: 50 Amps

  • DIMENSIONS: 6 x 13¾ x 11"

  • SHIPPING WEIGHT: 46 lbs

  • FUSE: GMC 10A

  • POWER TERMINALS:

    • 1/4"-20 Screw Type

  • AC POWER DRAW: IDLE: 316mA & FULL LOAD: 8.2A

  • FAN COOLED: No

  • LED BACKLIT VOLT AND AMP METERS

Features:

  • SOLID STATE ELECTRONICALLY REGULATED

  • FOLD BACK CURRENT LIMITING Protects Power Supply from excessive current and continuous shorted output

  • CROWBAR OVER VOLTAGE PROTECTION ON ALL MODELS

  • MAINTAIN REGULATION AND LOW RIPPLE at low line input Voltage

  • THREE CONDUCTOR POWER CORD

  • HEAVY DUTY HEAT SINK

  • INPUT VOLTAGE: 105-125VAC

  • OUTPUT VOLTAGE: 13.8VDC ±0.05 volts?

  • INTERNALLY ADJUSTABLE VOLTAGE (11-15VDC)

  • RIPPLE: LESS THAN 5MV PEAK TO PEAK (full load and low line)

  • LOAD REGULATION: 0.08% from 0 to Full Continuous Load??

  • EFFICIENCY: 77%

  • OPERATING TEMP: -10 to 55°C

  • ANDERSON POWER POLES INSTALLED IN -AP MODELS

  • 220V MODELS AVAILABLE BY SPECIAL ORDER
