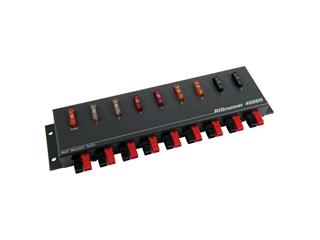

West Mountain RR/4008H/C 58307-1036

Anderson Powerpole Connectors Provide Interoperability for Emergency Communications

• Our Powerpole^® configuration conforms to the ARES, RACES, RSGB standard, and ARRL recommendation for high current 12 VDC connectors.
• Safe secure, HOT CONNECT, polarized, color keyed, genderless connector system.
• No messy binding posts, frayed wire connections, black tape or short circuits!
• A full array of quick change Powerpole^® power supply, extension and adapter cables available

High Current Capability

• High current! More than enough 12 V power for your station. Pick the appropriate model
• Each outlet may be used at full ratings: transceivers, amplifiers or any accessory
• The 8012 is conservatively rated at 80 A total with any outlet good to 40 A
• Models 40xx are conservatively rated at 40 A total with any outlet good to 40 A
• 4004, 4005, 4008 & 4012 models can use any output jack as the power input with full ratings

Protected with Electronic Solid State Fuses or Readily Available ATC/ATO Fuses

• 4005i features electronic fuses with user configurable trip points, 1 to 40 A
• Each outlet is individually fused with automotive ATC/ATO fuses on other models. Shipped with appropriate fuses installed
• Fuses are quick change; accessible from the outside using high quality fuse holders
• ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40 A

Power Monitoring and Alerts

• Precision window comparator quick status power monitor, makes a voltage problem obvious
• LED over and under voltage indicators instantly indicate a problem, without interpretation
• An audio alert is configurable to alarm on overvoltage or under voltage (both on 4010, 8012, 4012 & 4008 only) or may be disabled.
• Each fuse has a handy blown fuse LED illuminator to show short circuit problems instantly
• 4005i can issue alarm emails

RF Suppression

• RF suppression on each outlet suppresses RF leakage between equipment. Keeps your power supply in regulation
