West Mountain RB/NO/CUSB 58008-959

Capabilities

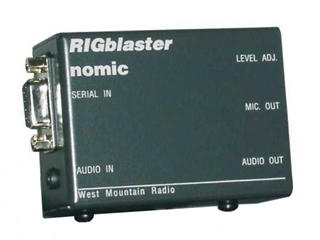

The RIGblaster Nomic is a small, simple, rugged and inexpensive sound card interface - perfect for portable or temporary setups.

Compatible with All Manufacturers' Radios

• Can be used with almost any make or model microphone and most model radios no matter what brand
• Any radio that has a 8 pin round screw on microphone connector
• Any radio that has an RJ45 modular telephone style connector
• Any radio with RJ25 6 wire microphone connector with the purchase of an optional FT100 style 6 wire modular mic. cable
• Any radio with 4 pin round microphone connector with the purchase of a optional 4 pin mic cable

Computer Interface

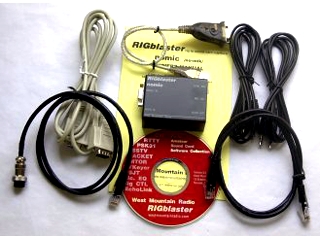

• Supplied with both a standard DB9 RS232 serial cable and USB cable interface (supported for Mac (OS9,10), Linux, Windows (98SE - Vista 32 and 64 bit)! May be used old or new computers with your choice of USB or RS232 DB9 serial
• No external power supply necessary so it is great for portable or QRP operation
• Great simple and inexpensive choice for a dedicated Internet link with the EchoLink System

Mic / Keying / Audio

• Properly matched and RF suppressed audio for your radio
• Fully isolated transmit audio and PTT keying, unlike other interfaces that have little or no isolation
• Easier hookup thanks to our fully isolated audio and computer keying circuits
• Positive and fully automatic PTT control supported almost 100 ham programs, no illegal or spurious signals due to built in sound card VOX operation

Construction

• Assembled in USA to IPC-610 manufacturing standards
• Printed circuit board uses FR4 material, double sided, plated through holes, solder mask over bare copper, silk screened
• Enclosure: .062 aluminum, polyurethane painted, silk screen labeling front and back
• 3M Bumpon™ protective feet and 3M™ adhesive pads are provided for mounting
• Stainless steel hardware throughout including PEM™ threaded mounting standoffs
