MOMOBEAM PENTA10

MOMOBEAM PENTA10

Penta 10 Element Yagi 10/12/15/17/20 Meter Bands

Regular Price: $1,599.95

Additional Savings

-$200.00  HRO Summer Savings Sale! (Exp:11/30/24)

HRO Discount Price: $1,399.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
Anaheim, CA
Atlanta, GA
Denver, CO
Milwaukee, WI
New Castle, DE
Phoenix, AZ
Plano, TX
Portland, OR
Sacramento, CA
Salem, NH
Winter Springs, FL
Woodbridge, VA
PENTA10 Description     Hide

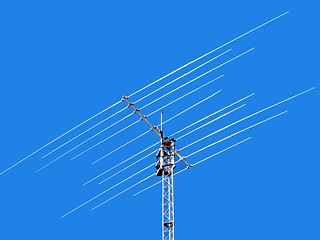

PENTA10 is the popular multiband yagi antenna with a compact design that covers the 10-12-15-17-20 Meter Bands using a single coaxial cable.

All elements are full size, thus guaranteeing performances clearly superior to those of the old generation antennas. Element spacing has been carefully designed using the latest generation simulation software to ensure optimal performance.

Extremely simple to assemble thanks to the clear labeling of its parts and bolts (as for all MOMOBEAM Antennas), and telescoping tubing ready for rapid deployment. PENTA 10 does not require any calibration; during assembly it will not be necessary to choose between CW and SSB thanks to its flat SWR which never exceeds 1.5:1 on all operating bands.

PENTA10 is the ideal partner for those who want an antenna easy to be assembled, with excellent performance and compact dimensions.

The PENTA10 requires a mid-range rotor and is suitable for tower side mounting such as the Hazer system having a tower width of less than 50cm/19 inches.


Specifications:

PENTA10 1012151720 Bands 10 m 12 m 15 m 17 m 20 m
Gain dBi:
(at 20m from the ground)		 12.3 12.5 11.50 11.60 12.00
Gain dBd free space: 4.9 4.7 4.0 4.1 4.5
F/B: 25 15 15 15 15
Active elements: 2 2 2 2 2
Bandwidth kHz
SWR ≤ 1.5:1		 700 100 450 100 350
Boom length: 390 cm/12.80 ft
Turning radius: 590 cm/19.35 ft
Feed line: 1 x 50 Ohm
Max tower lift/ side mount: 50 cm/1.64 ft



  • Max element length: 1100 cm/36 ft
  • Power handling: 10 KW
  • Wind area: 0.795 m²/8.6 sq ft
  • Wind load 130Km/h: 635 N
  • Wind survival*: 130 Kmh – 80 MPH
  • Tower Leg/Mast diameter: 40/60 mm – 1.57/2.36 inch (larger on request – specify on order form)
  • Balun: 3 KW included
  • Weight (excluding packaging): 27 Kg/60 lb



MATERIALS USED

  • Tubes and plates: aluminum alloy, 6060T6
  • Hardware: stainless steel
  • Insulating clamps: UV resistant polypropylene



Manual: English
