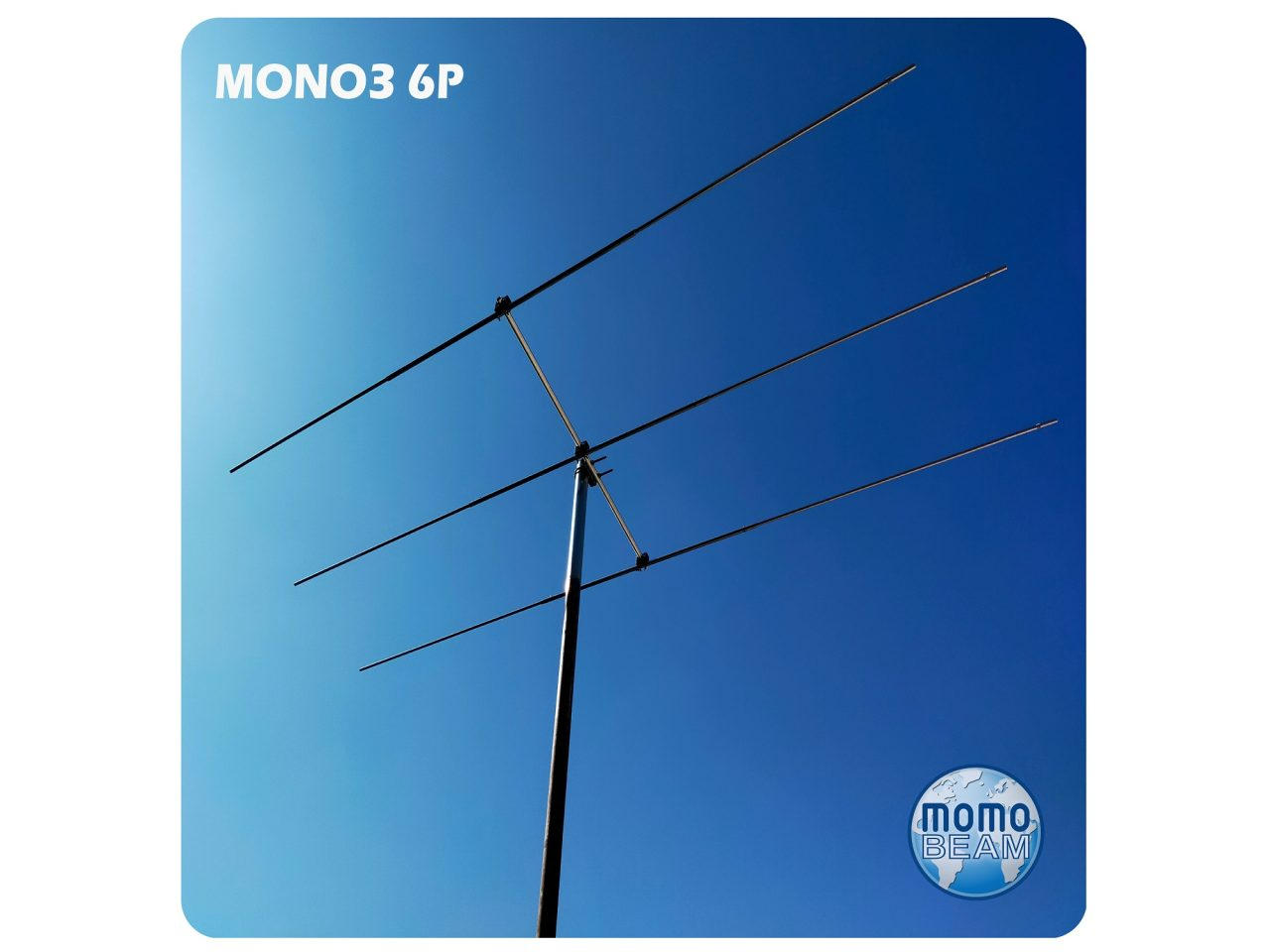

MONO3 6P is the perfect antenna for your SOTA/POTA Activations!
Weighing only 1.9 kg / 4.2 lb, it will surprise you with its performance and ease of use.
Assembly/disassembly is very quick thanks to the use of Wing Nuts so it is perfect for portable use.
The MONO3 6P covers 50 to 52 MHz with a flat SWR curve of less than 1.5:1 an excellent front-to-back ratio and high gain.
** RF Choke: 200 W included (SO239 plug)
Requires a rotor for light load
Download The User Manual Here!
SPECIFICATIONS:
- Longest Element: 310 cm/10.17 ft
- Power Handling: 3 kW
- Wind Area: 0.1 m²/1.1 sq ft
- Wind Load 130Km/h: N
- Wind Survival*: 100 Kmh/55 Mph
- Mast Diameter: 50 mm/2 inch
- Weight (excluding packaging): 1,9 Kg/ 4.19 lb
MATERIALS USED:
- Tubes and Plates: Aluminum alloy 6060T6
- Hardware: stainless and galvanized steel
- Insulating Clamps: polypropylene UV resistant
Manual: English
*Wind survival is the maximum wind speed to which the antenna can be subjected without incurring permanent deformation (calculated in the absence of ice)
**The Momobeam RF Choke is made from high quality Teflon dielectric, double shielded, low loss coaxial cable with properly selected ferrite material that is sleeved over the cable that together, create a high impedance path for RF, providing high isolation between the antenna and coaxial feedline.
An SO-239 female connector is included for convenient attachment to the customer feedline and its PL-259 Male connector.
