MOMOBEAM MONO5 6
MOMOBEAM-MONO5 6-Image-1 MOMOBEAM-MONO5 6-Image-2

MOMOBEAM MONO5 6

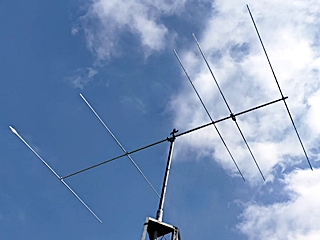

Yagi Monoband 5 El. 6 Meter

Regular Price: $399.95

Additional Savings

-$75.00  6 Meter - Magic Band Promotion (Exp:11/30/24)

HRO Discount Price: $324.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
Anaheim, CA
Atlanta, GA
Denver, CO
Milwaukee, WI
New Castle, DE
Phoenix, AZ
Plano, TX
Portland, OR
Sacramento, CA
Salem, NH
Winter Springs, FL
Woodbridge, VA
MONO5 6 Description     Hide

MONO5 6 is a five elements antenna for the MAGIC BAND of 50 MHz.

With only 5 kg/11 lb of weight, it will surprise you with its incredible performances.

MONO5 6 easily covers the most-used part of the band with a flat SWR curve below 1.5:1, excellent front/back ratio and high gain.

It is super sturdy, like all Momobeam antennas

Mounting: Mast or side mounted on towers. Requires a rotor for medium load.


SPECIFICATIONS:

MONO5 6 Band 6 m
Gain dBi:
(20 meters above the ground)		 16.2
Gain dBd free space: 8.3
F/B dB: 25
Active elements: 5
Bandwidth kHz
S.W.R. ≤ 1.5:1		 500
Boom Length: 430 cm/14.10 ft
Turning radius: 265 cm/8.70 ft
Feed line required: 1 X 50 Ohm
Max tower lift side: 140 cm/4.60 ft



  • Longest element: 303 cm/9.94 ft
  • Power handling: 3 KW
  • Wind area: 0.25 m²/2.69 sq ft
  • Wind survival*: 100 Kmh/55 Mph
  • Mast diameter: 50 mm/2 inch
  • Balun: 2 KW included
  • Weight(excluding packaging): 5 Kg/ 11 lb


MATERIALS USED:

  • Tubes and plates: Aluminum alloy 6060T6
  • Hardware: stainless and galvanized steel
  • Insulating Clamps: polypropylene UV resistant


Manual: English
