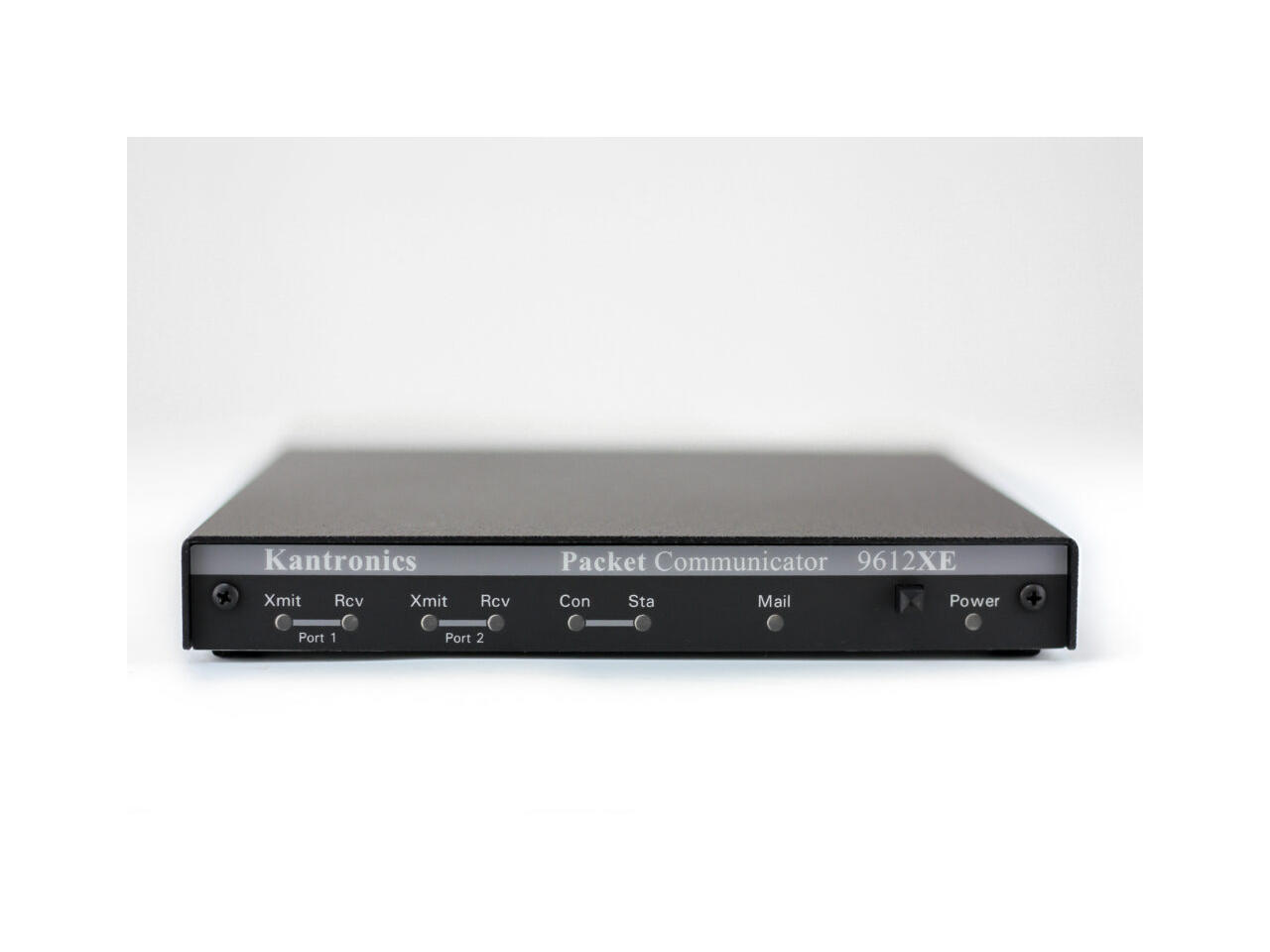

KANTRONICS KPC-9612XE RS-232

Overview:

KPC-9612 EX Applications Include:

• 'Keyboard to keyboard' communications
• Send/Receive Files
• Send/Receive Paging signals (POCSAG 512, 1200, 2400)
• Digipeater
• Personal Mail Box
• Local area node
• Remote control devices
• Remote access
• Node and Network node operations
• BBS operations and message forwarding
• GPS position transmitting and tracking (NMEA-0183 data required)
• Data storage and retrieval
• Weather facsimile reception (requires additional software)
• EMWIN weather information (requires additional software)
• 1200 <--> 9600 gateway operation

KPC-9612 EX 512K RS-232 Features:

• Dual port 1200/9600 bps operation, standard
• Port 1 supports 1200 bps
• Port 2 supports 4800, 9600, 19200, 38400 bps with DFSK modulation
• "NEWUSER" mode provides a quick start for packet newcomers
• Large capacity internal mailbox and mail forwarding feature
• Multiple user mailbox flashes Mail lamp for up to 10 call signs
• GPS operation mode allows use with APRS® or other geolocation software
• Telemetry functions and Remote Control with two A/D inputs and two control line outputs
• Paging transmit/receive capability -- POCSAG compatible
• Faster HC11 Motorola® central processor
• Digital audio drive control -- set from keyboard or by remote control
• Low current requirements
• Node and Network node functions standard "KA" Node and K-Net™
• BBS, KISS, XKISS, HOST, TERMINAL, GPS and MODEM operating modes
• Upgradeable as new firmware is released
• "Online" HELP feature
• 512k memory standard
• Comes with data connector, data wire, coaxial power plug, detailed manual & basic software
• Use with base, mobile or hand-held radios
• Made in the USA -- Limited one year warranty to original purchaser
