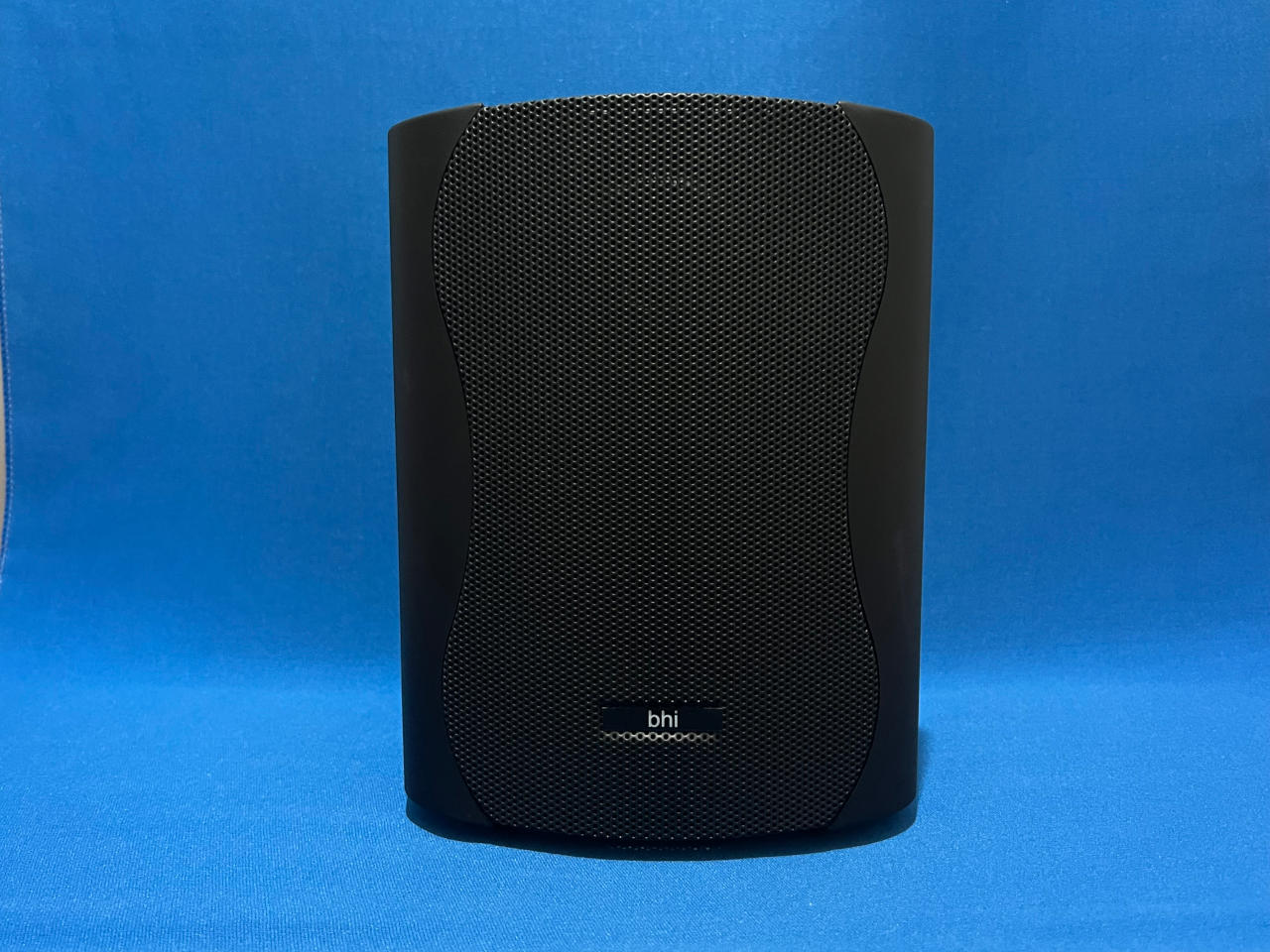

bhi Ltd EXTSPK25

USE WITH YOUR BHI EQ20 DSP UNIT FOR EXCELLENT AUDIO!

Description:

The EXTSPK25 single 2-way extension speaker can be used with a wide range of radio communication equipment including the bhi ParaPro EQ20 audio DSP range and the bhi Dual In-Line module. The EXTSPK25 speaker has a Pivoting removable metal mounting bracket with 2 keyhole mounting slots which can be easily removed. It can be mounted vertically or horizontally and is supplied with a quality 2m audio lead with a 3.5mm (1/8”) mono plug on one end and bare ends on the other. When listening to stereo signals on the ParaPro EQ20 range two EXTSPK25 speakers are required, just add another one to your shopping cart if you require stereo. For connection into a 3.5mm stereo socket with two EXTSPK25 speakers the bhi ALD-Y01 splitter cable adapter is required. This adapter cable combines the mono inputs into stereo.

Connections:

Connect the bare ends of the supplied audio cable to the 4mm binding posts of the EXTSPK25 (+ve red, -ve black) and the 3.5mm mono plug to the extension speaker socket of your radio or receiver. Ensure that the red core is connected to the red 4mm binding post.

Supplied with:

Single 2-way cabinet speaker supplied with a 2m long fig-8 audio cable (30 x 0.12mm) terminated with a 3.5mm (1/8”) mono jack plug and tinned bare ends

Optional extras:

Set of protective rubber feet, order code DESKTOP-FEET
ALD-Y01 adapter cable 3.5mm Stereo plug to 2 x 3.5mm mono sockets 0.5M long
EXTSPK25 2-way cabinet speaker with 2m cable (for stereo)

Features

• 4" LF driver and 1" HF tweeter
• Full range sound output , frequency response 70Hz -18kHz
• Sensitivity: 88dB
• Impedance: 8 Ohm
• Power rating: 25W RMS, 50W Max
• Speaker connections: 4mm screw-terminal binding post connections
• Pivoting removable metal mounting bracket
• External Width: 160mm External Depth: 150mm
• Weight: 1.5kg
• Two speakers required for stereo use
