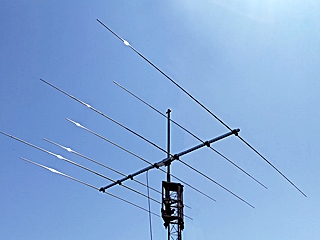

MOMOBEAM DUO7 1015

MOMOBEAM DUO7 1015

Yagi Dualband 7 El. 10/15 Meter

Out Of Stock - Delivery Will Be Delayed!

HRO Discount Price: $1,199.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
Anaheim, CA
Atlanta, GA
Denver, CO
Milwaukee, WI
New Castle, DE
Phoenix, AZ
Plano, TX
Portland, OR
Sacramento, CA
Salem, NH
Winter Springs, FL
Woodbridge, VA
DUO7 1015 Description     Hide

DUO7 10-15 is a very compact dualband yagi with full size elements for 21 and 28 MHz bands with a compact size and surprising performance.

Simple to assemble, DUO7 10-15 does not require any calibration. It features flat SWR below 1.5:1 on all operating bands and is a perfect fit for modern transceivers and linear amplifiers.

Requires only one coaxial cable.

It is the perfect companion for a monoband for 20 meters.

Requires a rotor for a medium / light load


SPECIFICATIONS:

DUO7 1015 Bands 10 m 15 m
Gain dBi:
(20 meters above the ground)		 13.3 12.45
Gain dBd free space: 5.45 4.78
F/B: 20 21
Active elements: 4 3
Bandwidth kHz
S.W.R. ≤ 1.5:1		 700 450
Boom Length: 400 cm/13.12 ft
Turning radius: 420 cm/13.77 ft
Feed line required: 1 X 50 Ohm
Max tower lift side: 50 cm/1.64 ft



  • Longest element: 760 cm/24.93 ft
  • Power handling: 10 KW
  • Wind area: 0.52 m²/5.6 sft
  • Wind load 130Km/h: 419 N
  • Wind survival*: 130 Kmh – 80 MPH
  • Tower Leg/Mast diameter: 40/60 mm – 1.57/2.36 inch (larger on request – specify on order form)
  • Balun: 3 KW included
  • Weight (excluding packaging): 18 Kg/40 lb


MATERIALS USED:

  • Tubes and plates: aluminum alloy 6060T6
  • Hardware: stainless steel
  • Insulating clamps: Polypropylene UV resistant

Manual: English
