OPEK CX-301-N

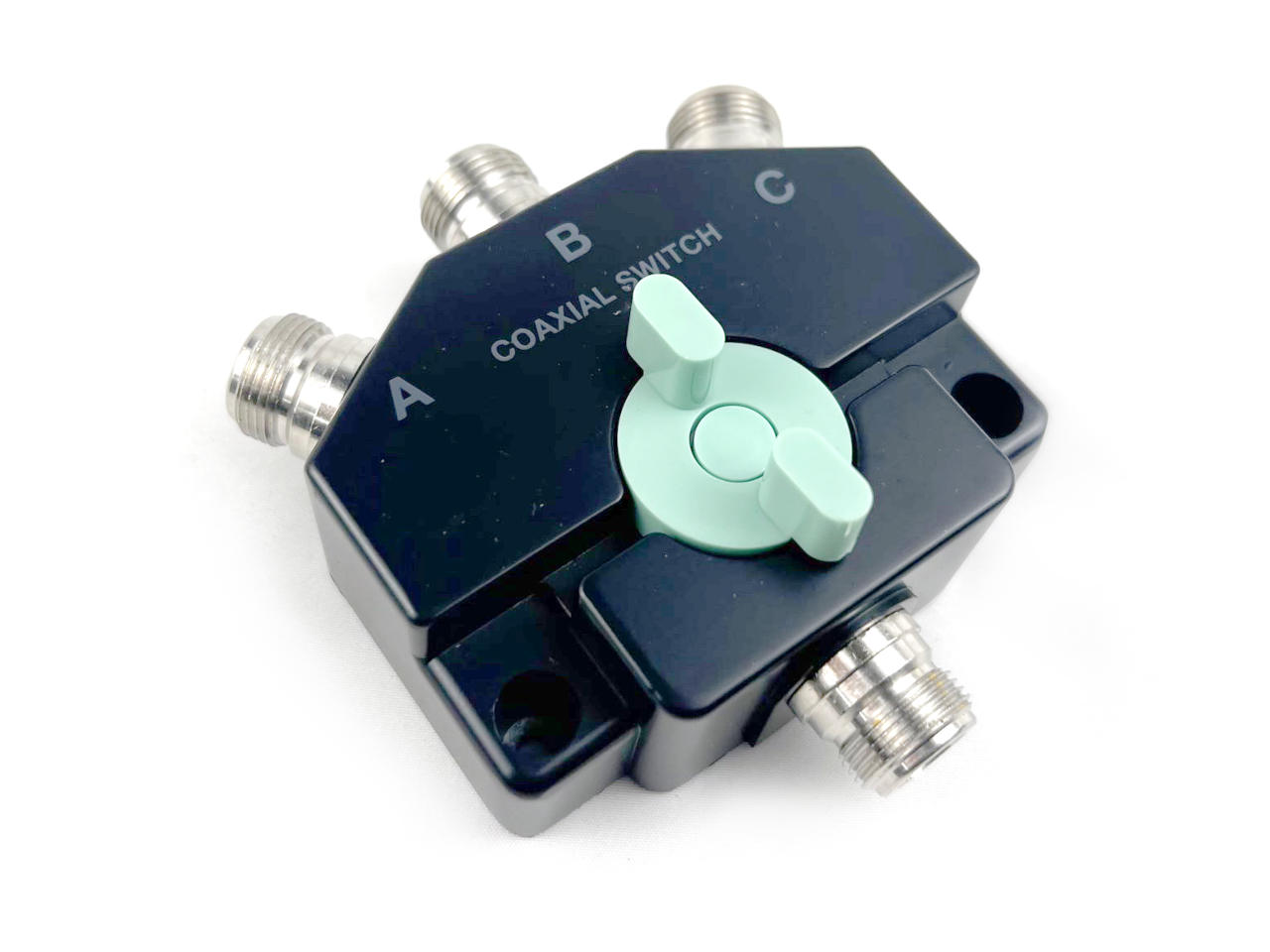

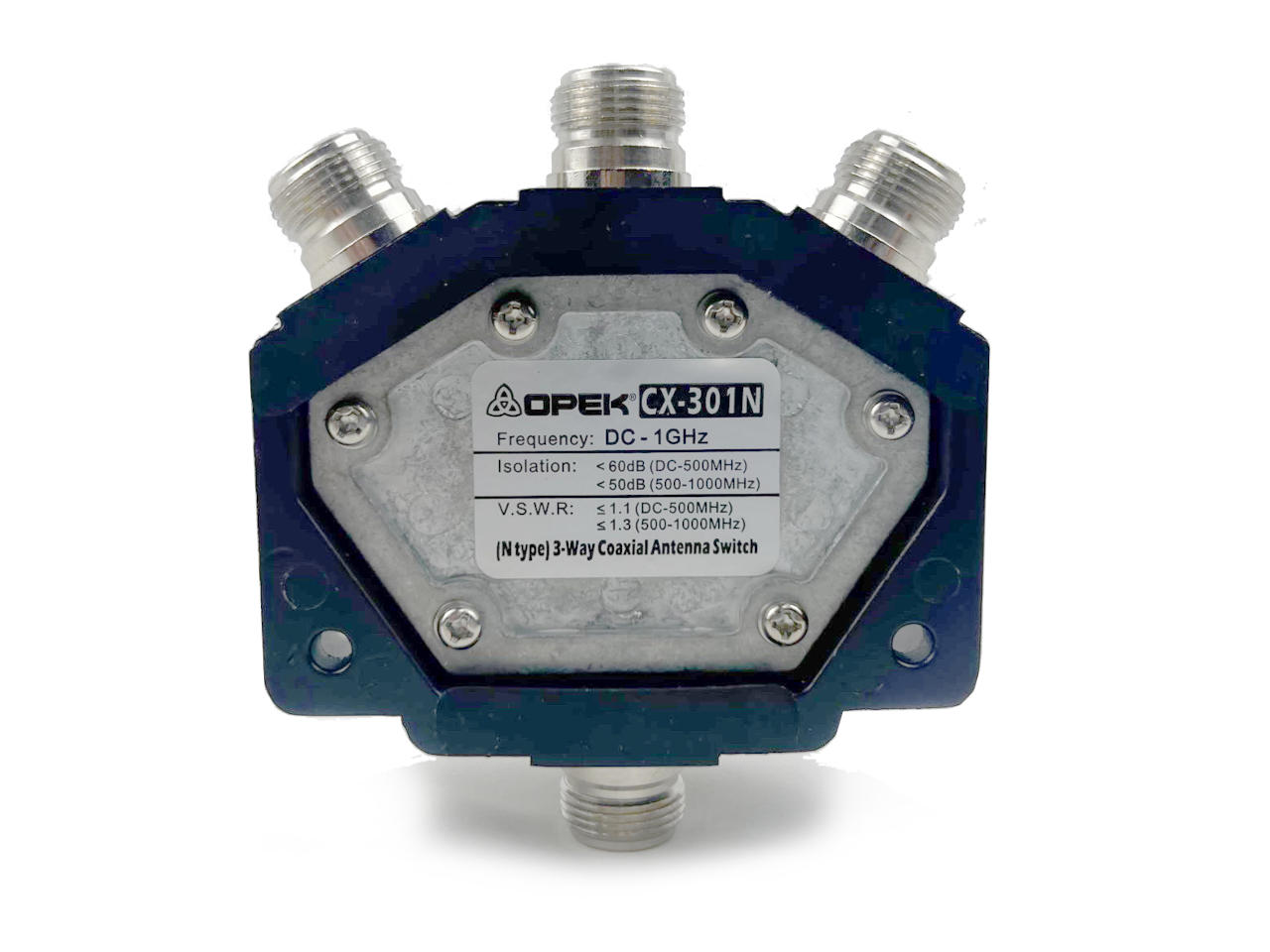

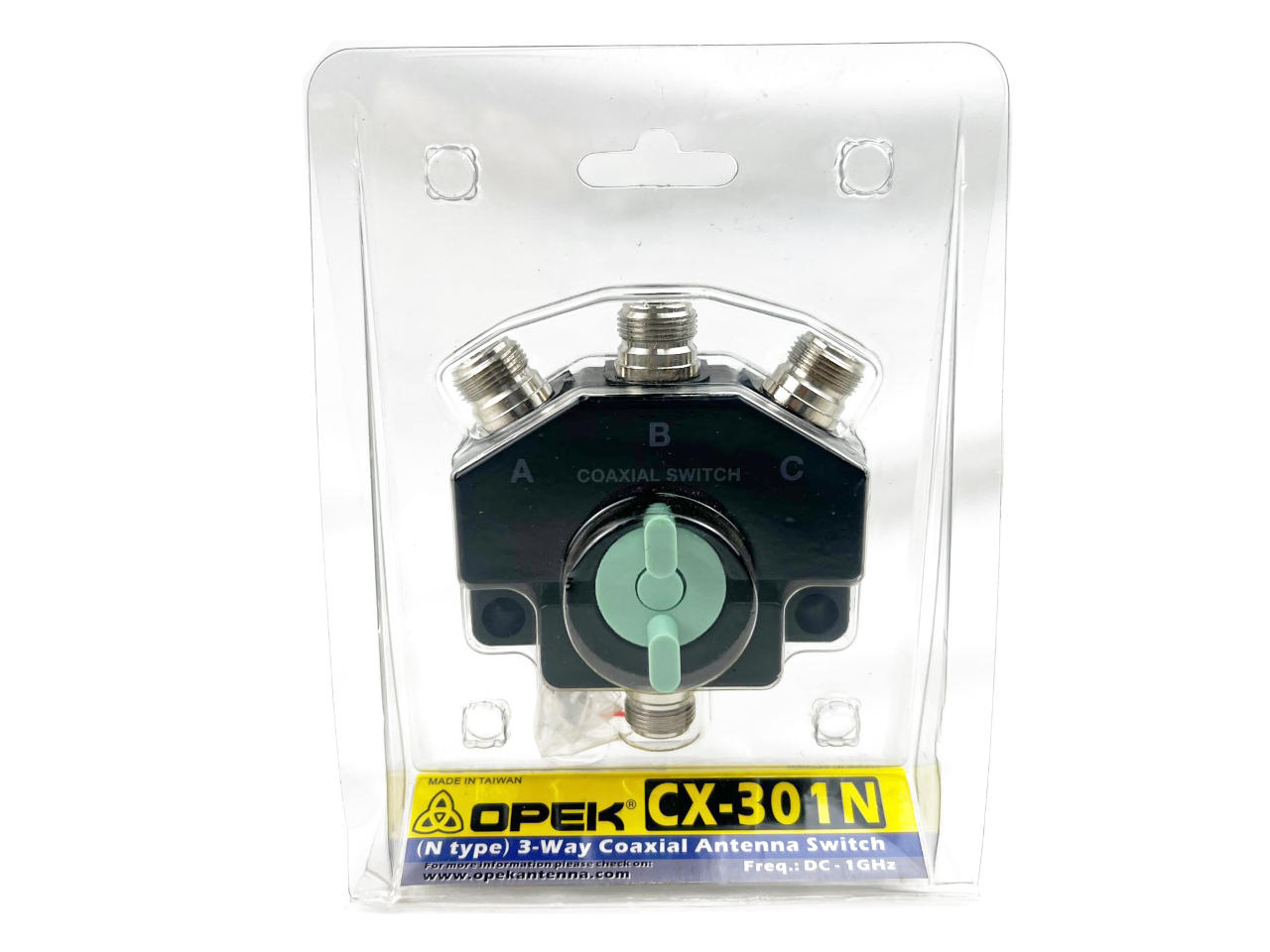

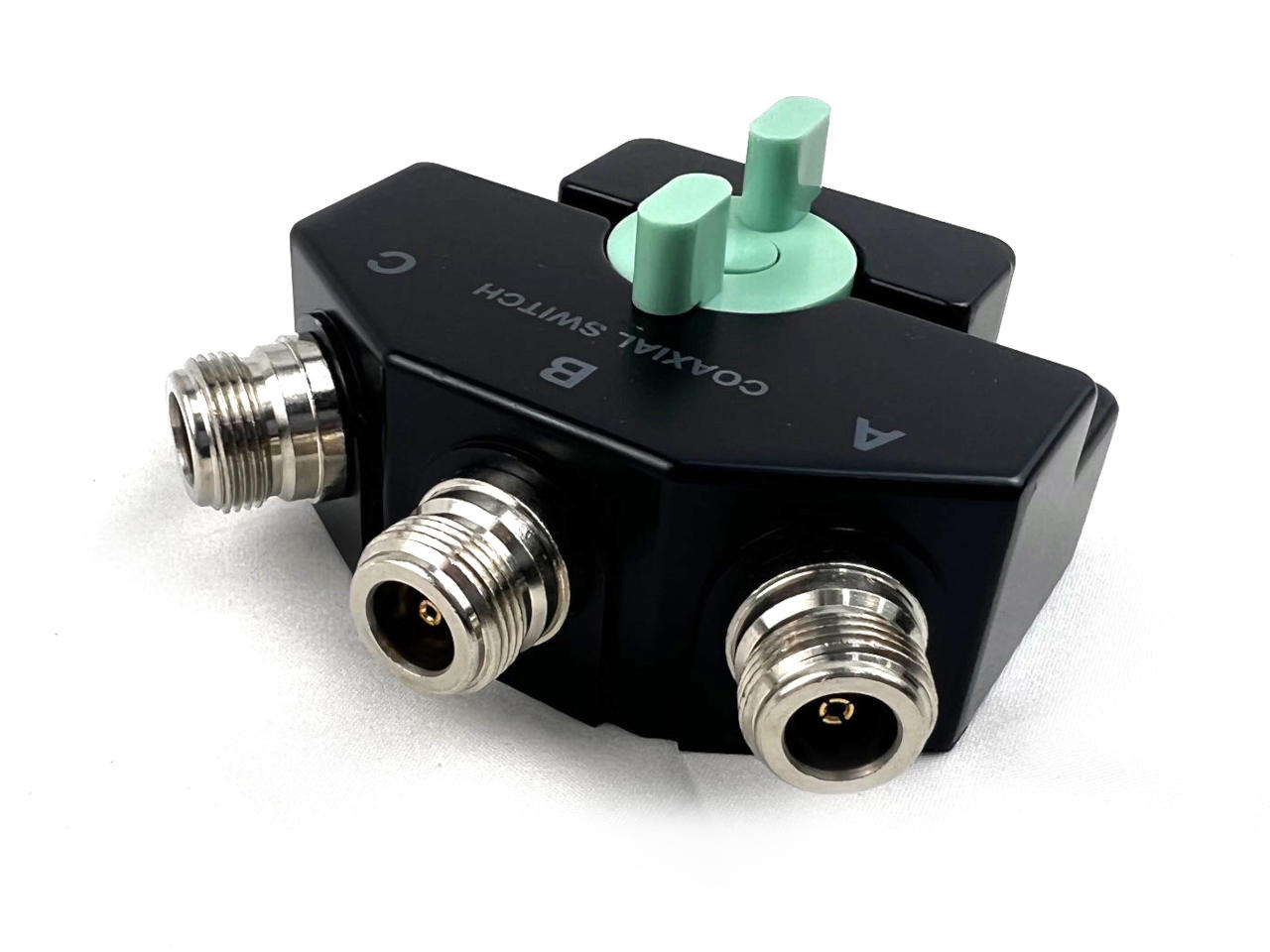

OPEK-CX-301-N-Image-1 OPEK-CX-301-N-Image-2 OPEK-CX-301-N-Image-1 OPEK-CX-301-N-Image-4

OPEK CX-301-N

3 Position Premium Coax Switch DC - 1 GHz N-Connectors

HRO Discount Price: $62.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
CX-301-N Description     Hide

3-WAY COAX ANTENNA SWITCH

CX-301N W/N-TYPE JACKS FEATURES:

  • CENTER GROUND TAP KEEPS THE UNUSED TERMINALS ALWAYS GROUNDED
  • ROTARY SELECTING SWITCH
  • FREQUENCY: UP TO 1 GHz (CX-301N)
  • V.S.W.R.: LESS THAN 1.2:1
  • POWER RATING: 1 KW (CW)
  • IMPEDANCE: 50 OHMS
  • INSERTION LOSS: LESS THAN 0.2 dB
  • ISOLATION: BETTER THAN 60 dB (DC-500MHz)
