In-Stock Free Shipping!
HRO Discount Price: $149.96*
*After Coupons & Promotions.

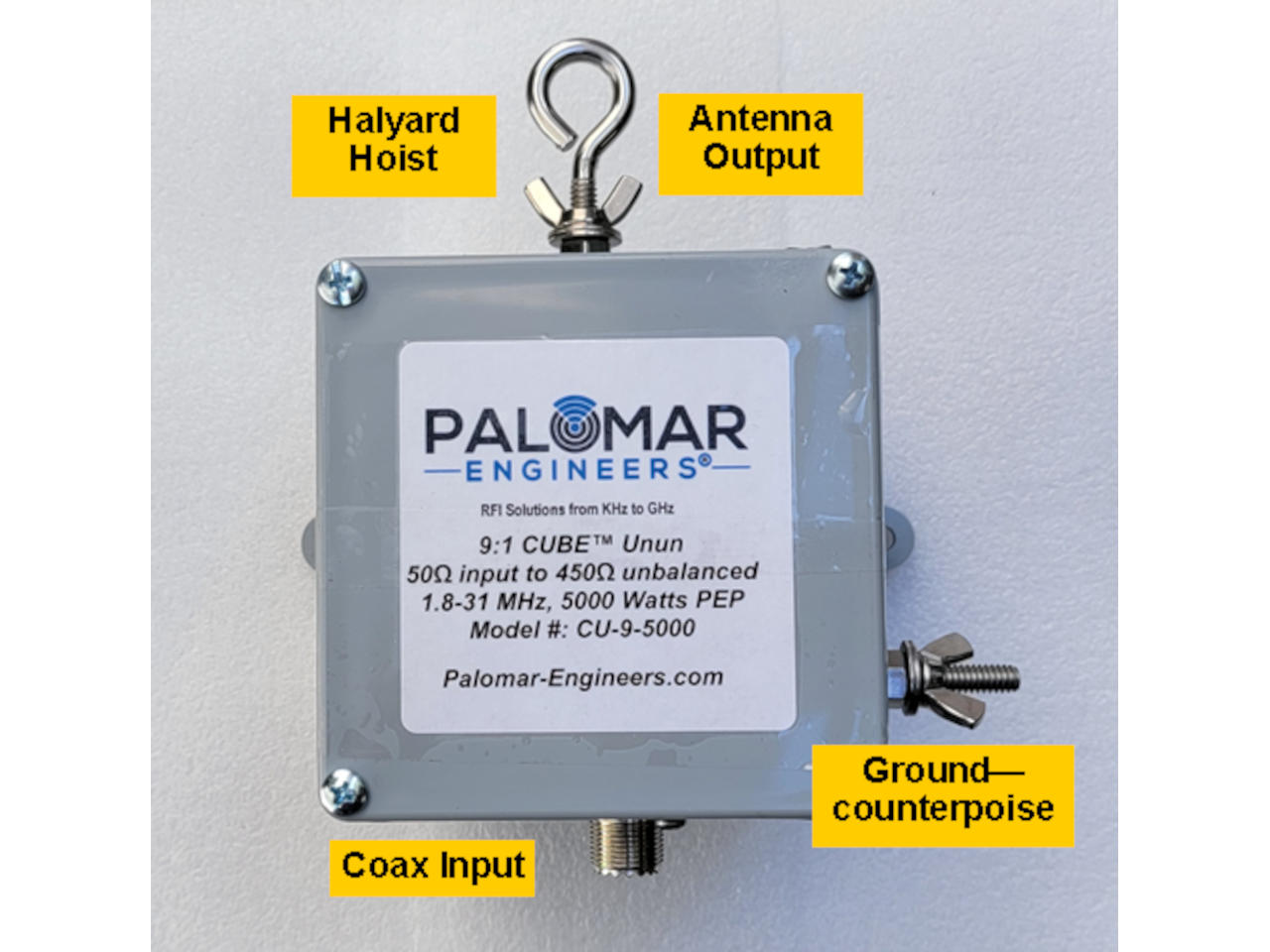

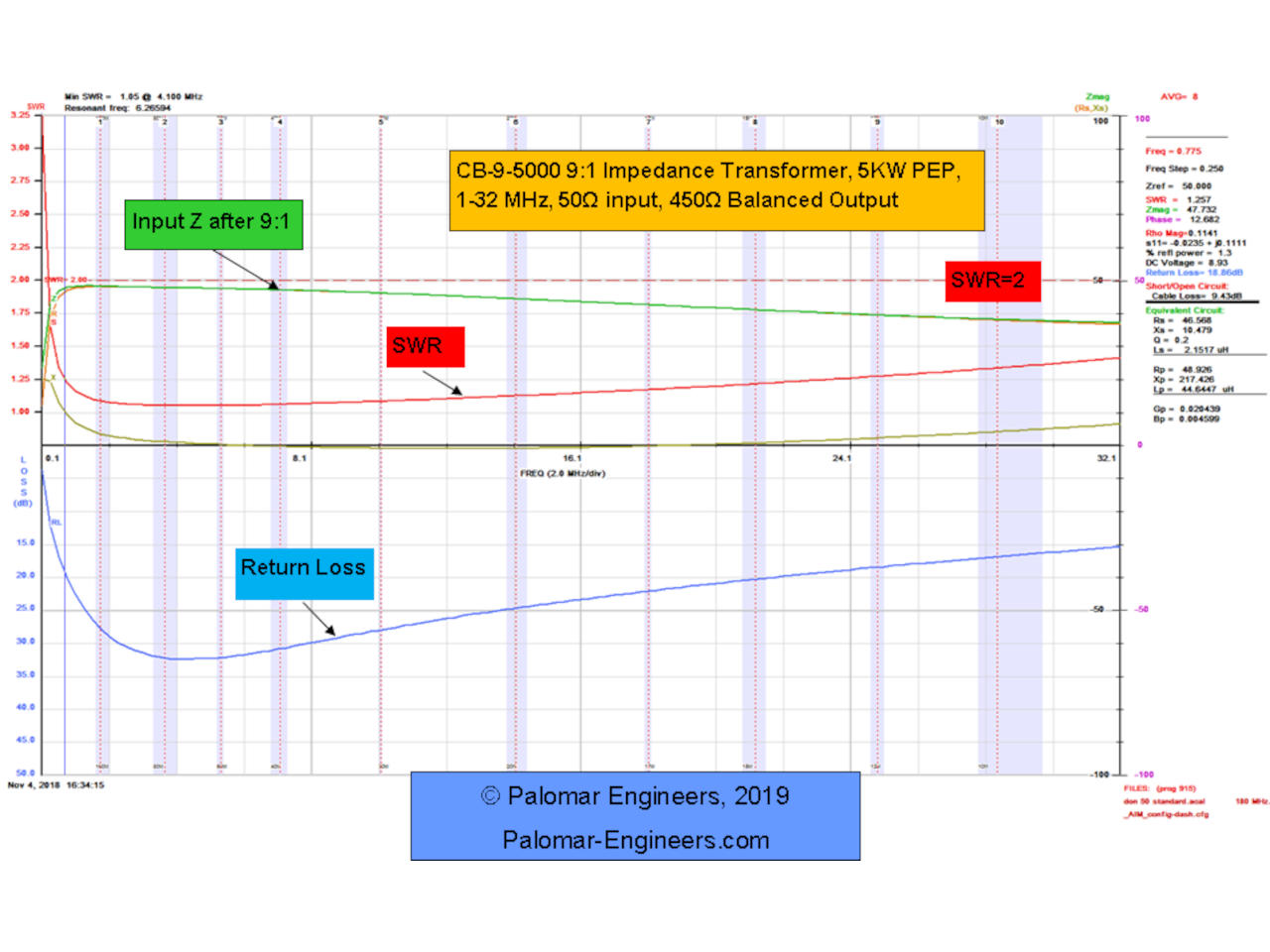

Model CU-9-5000 is a 9:1 multi-core unun housed in a NEMA enclosure box (4″ x 4″ x 2″) with top stud/eyebolt output used to translate a 50 ohm input up to 450 ohms at RF power levels up to 5000 watts PEP (SSB) when used with a matched load. Usable to 61 MHz under 2:1 SWR with matched load.
Great for end fed antennas - FT-8 and digital mode power ratings are approximately 30% of PEP ratings into a matched 450 ohm load. For non-resonant end fed antennas, you will need a feed line choke on the coax. See typical antenna configuration notes below for details.
