Universal Towers HD9-80
Free Shipping!
Out Of Stock - Delivery Will Be Delayed!
HRO Discount Price: $119.95*
*After Coupons & Promotions.
MPN: CU-8-1500, CU-8-3000 Type: NEW Input ohms/Output ohms: 50 in / 400 output Frequency Range < 2:1 SWR (MHz): 1.8-61 PEP Power Rating (watts): 1500/3000 Input Connector: SO-239 Hardware Type: Stainless Steel - 1/4" Enclosure Size: 4" x 4" x 2" (1.5K), 4"x4"x4" (3K) Antenna Compatability: terminated end fed

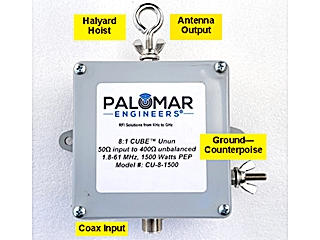

Model CU-8-1500 is a 8:1 multi-core unun housed in a NEMA enclosure box (4″ x 4″ x 2″) with top stud/eyebolt output used to translate a 50 ohm input up to 400 ohms at RF power levels up to 1500 watts PEP when used with a matched load. The 3KW version is in a 4" x 4" x 4" enclosure and weighs 4 pounds
Great for end fed antennas terminated in 400 ohms - great for FT-8 and digital mode power ratings are approximately 30% of PEP ratings into a matched 450 ohm load. For non-resonant end fed antennas, you will need a termination resistor at the end of the antenna.
