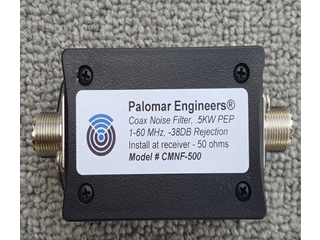

Palomar Engineers CMNF-500-50

Application:

• For coax feed lines with receive and transmit signals, you will love the small size, wide frequency range and excellent attenuation of common mode noise interference
• Reduces broadband common mode receiver noise* picked up on the outside of the antenna coax feed line.
• Wide frequency range works on all brands of radios and coax fed antennas from 1-60 MHz
• Common mode noise rejection up to -38 DB (3-6 "S" units) depending on frequency
• Simple plug & play installation: plug a short jumper from the CMNF-500HF to your radio and plug the feed line into the other SO-239 CMNF-500HF input. Either connector can be input or output. Rated at 500 watts PEP, 50 ohm input/output

• Will work with Bias-T antenna switches and will pass DC voltage from input to output with no attenuation


Installation Note: For best results, and to reduce co-interference between choked and unchoked coax feed lines with multiple antennas, ALL antenna feed lines entering the radio room need to have a separate feed line choke particularly if they are at a different frequency then HF, like VHF or UHF.

If you use a antenna switch for multiple antennas in the 1-61 MHz range, place the CMNF-500HF in the "common" line of the antenna coax switch and the receiver.
