New Chameleon 25 Foot Telescoping Mast for Portable Yagi, Inverted V, and Vertical Antennas
The 25 Foot CHA PORTA MAST is ready to support your portable antennas. This sturdy telescoping mast is
25 foot in length and can be used to support a lightweight Yagi and rotator, a wire antenna (like an Inverted V or Sloper), or a VHF/UHF Vertical Antenna.
The top section of the aluminum mast has a diameter of 1 ¾ inches
There are a variety of mounting options for the CHA PORTA MAST:

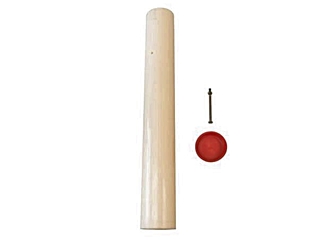

- Semi permanent home installation is accomplished using the supplied in ground sleeve or with an
optional Deck or Side Mount
- For mounting to a structure Temporary RV style installation requires either the optional Wheel Stand or Hitch Mount
Specifications:
Actual Length (ft): 26.5
Effective Height (ft): 25.00
Collapsed Height (ft): 7.92
Sections: 4
Base Section Diameter (in): 3.0
Top Section Diameter (in): 1.75
Weight (lbs): 24
Wind Speed Survival (mph): 95
Maximum Antenna Wind Surface Area (sq ft): 3.3
