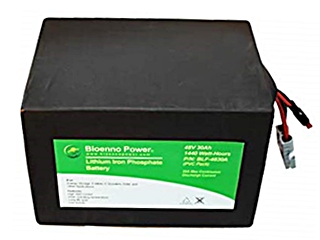

Bioenno Power BLF-4830A

Bioenno Power BLF-4830A

48V, 30Ah LFP Battery (PVC, BLF-4830A)

Out Of Stock - Delivery Will Be Delayed!

HRO Discount Price: $999.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
BLF-4830A Description     Hide

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-4830A is a state of the art 48V 30Ah battery. Designed for 48V devices, this battery is ideal for use in e-bikes, e-scooters, solar, robotics and other applications where higher voltage is needed but size is important. This unit boasts a compact light weight form factor with all connectors pre-assembled making this a true drop-in solution for your application. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 4A, with a DC Plug.  Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.

BLF-4830A User Manual [PDF]

BLF-4830A Battery Specifications
Voltage: 48V
Capacity: 30Ah
Case Type: PVC Pack
Charge Connector:  Anderson Power Pole PP45
Discharge Connector:  Anderson Power Pole SB50
Maximum Continuous Discharge Current: 30A (Make sure your load consumes less than 30A)
Maximum Peak Discharge Current: 60A (30 sec.)
Maximum Continuous Power:  1440 Watts (48V x 30A = 1440 Watts) (Make sure your load consumes less than 1440 Watts)
Dimensions:(L x W x H) 9.75 in. x 7.5 in. x 6.5 in. (248 mm x 191 mm x 166 mm)
Weight: 31.1 lbs.  (14.1 kg.)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry

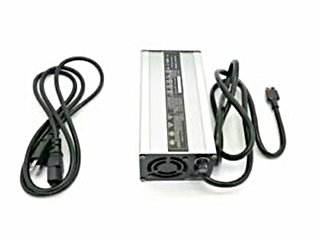

Available 120VAC/220 VAC Charger

Compatible AC-to-DC Charger Specifications
Input Voltage: 120VAC/220 VAC
Output Voltage: 58.2VDC
Current: 4A
Connector:  Anderson Power Pole PP45
Model Number: BPC-4804A

    Manufacturer's Website

BLF-4830A Accessories and Related Items
Epic PWRgate 58404-1673

Epic PWRgate 58404-1673

Epic PWRgate 12V Backup Power System Rated 40 Amps - MPPT Charging Technology

$189.95
INCLUDE
BPC-4804A

BPC-4804A

58.4VDC, 4A AC-to-DC Charger (Anderson) for 48V LiFePO4 Batteries (BPC-4804A)

$59.95
INCLUDE
DC-8A-LFP

DC-8A-LFP

DC TO DC CHARGER for LiFePO4 Batteries

$69.95
INCLUDE
