Model BA-4-250 is a 4:1 voltage balun/Unun kit used to translate a 50 ohm input up to 200 ohms at power levels up to 250 watts when used with a matched load. With a matched load the SWR will not exceed 2:1 over the frequency range 1.8 to 30 MHz.

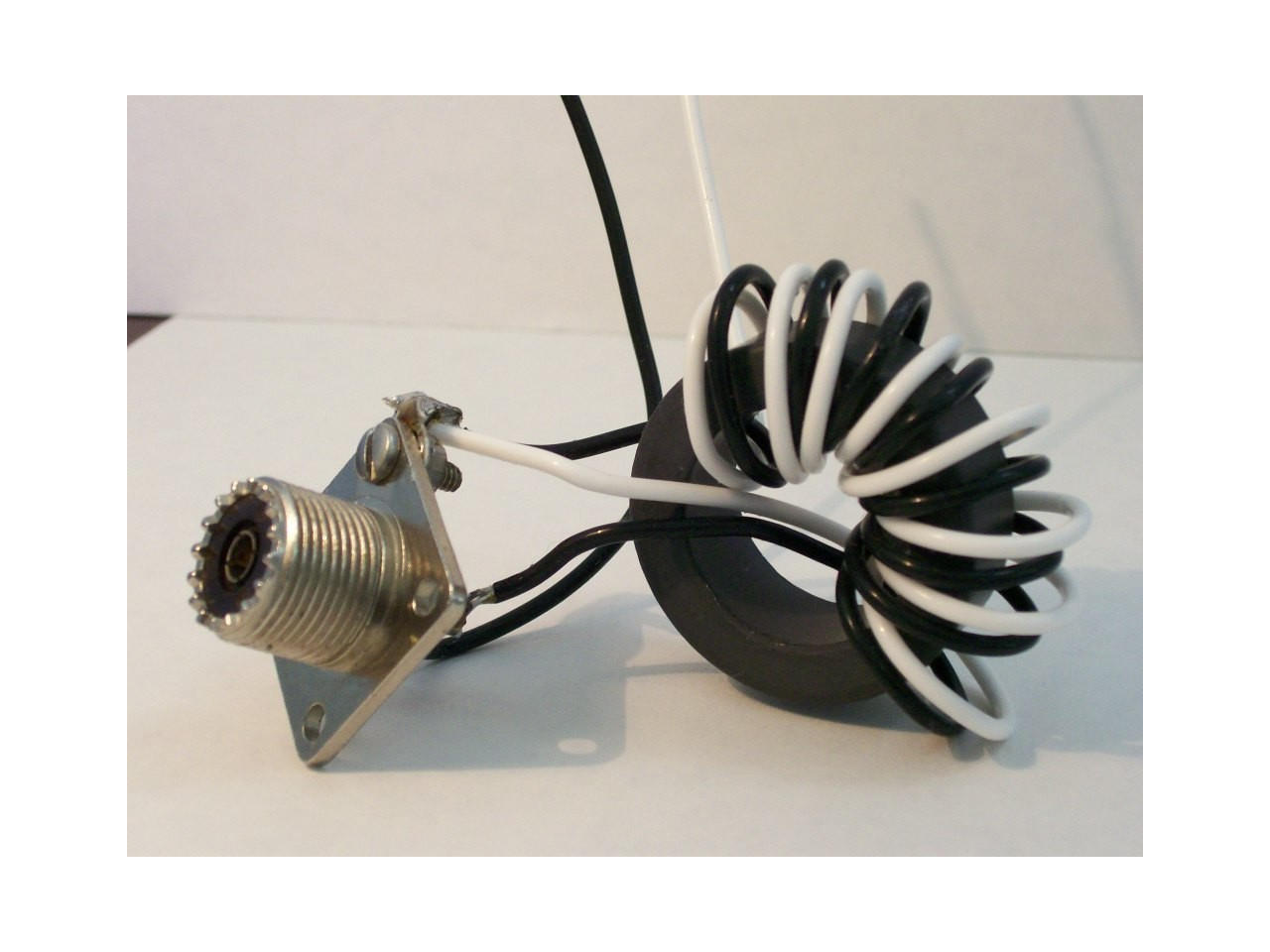

The kit consists of a 1.4" diameter ferrite core, two colors of insulated wire. a UHF connector with stainless steel hardware, and an instruction manual with directions to connect the kit as a 4 to 1 balun (balanced coax to balanced antenna like zepp or from 450 ohm feeder line to coax for a tuner) or 4 to 1 unun (unbalanced coax to unbalanced antenna like end fed or random wire).
This balun will also transform at 4:1 for a wide variation of load impedances. Shown below are AIM 4170 SWR results for a 200 ohm load. This balun gives near perfect transformation through 30 Mhz with a SWR under 1.25
