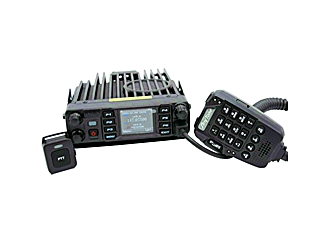

Anytone AT-D578UV Pro DMR Tri-Band Mobile Amateur Radio with GPS and Bluetooth
VHF/UHF Tri-band (2m/220/440) Digital/Analog Part 97 DMR Amateur mobile transceiver with 1.77 inch color TFT display Bluetooth, GPS and DMR roaming. Frequency coverage: AM Aircraft 108-136 MHz Rx, 144-148 MHz Tx, 222-225 MHz Tx, 420-450 MHz Tx and wide band receive. Includes USB Programming cable and external Bluetooth PTT button.
Roaming
Built-in DMR Repeater Roaming feature
VHF/UHF Tri-Band
Full Duplex Receive (V+V,U+U&V+U) w/ two volume controls
High Power Output
50W (45W UHF), 25W, 10W, 1.0W selectable TX power outputs
Programming Cable
Includes USB Programming Cable, free software available for download.
APRS / GPS Capable
DMR-APRS and Analog APRS Capable (GPS)
Digital DMR and Analog
Features both DMR digital and analog modes on any channel
Bluetooth
Bluetooth connectivity to some devices (see below)
Color TFT Display
1.77 inch color TFT screen for Day or Night operation. User changeable display and font colors.
Technical Specifications:
| Bluetooth: |
New Bluetooth feature compatible with many newer car entertainment systems and Bluetooth devices. It cannot be guaranteed that it will work with all of these devices. Anytone will continue improving the Bluetooth function to allow more device and car models in the future. No timeframe for these future Bluetooth updates is available. |
| Roaming: |
New Built-in Roaming Feature |
| APRS (GPS): |
DMR-APRS and Analog APRS Capable (GPS) |
| Additional Memory: |
Larger (2G) Memory for Future Enhancements |
| Aircraft Receive: |
108-136 MHz "AM" Aircraft Receive Feature |
| TFT Display: |
Background Display and Font Colors are User changeable |
| Digital Monitor: |
Monitor One or Two Timeslots |
| Zone Select: |
Selectable Zones from Keypad |
| Auto RX Mode: |
Receiver Auto Selects to incoming Digital or Analog Signal |
| GPS: |
Built-in GPS feature |
| Memory Channels: |
4,000 channels |
| DMR Talk Groups: |
10,000 |
| Digital Contacts: |
500,000 (complete worldwide database from DMR-MARC) |
| Power Levels: |
VHF (144-148 MHz): 50/25/10/1 Watts, 220 (222-225 MHz) 5/1 Watts, UHF (400-480 MHz): 45/25/10/1 Watts |
| Zones: |
250 zones, up to 250 channels per zone. |
| Display: |
1.77 inch color TFT Screen with selectable dual channel or single channel display |
| Bandwidth: |
12.5 / 25.0 kHz Analog, and 12.5 kHz DMR |
| Import/Export: |
Enhanced CPS allows direct input and export of channels, digital IDs and talkgroups |
| Amateur Radio: |
Ideal for Amateur Radio DMR networks and analog frequencies. Software importable worldwide amateur contact database. |
| DMR Compatibility: |
Supports both Tier I and Tier II operation, making it compatible with DMR repeaters that utilize two-slot TDMA technology |
| Amateur Radio: |
Also operational on amateur radio DMR networks and analog frequencies. Software importable worldwide amateur contact database. |
| Cross-Band Repeat: |
Built-in Cross-band repeat function |
|
Programmable:
|
FCC 47CFR90.203 requires the keypad locked in the shipping configuration. Software keypad unlocking and re-programming are available with the included USB Programming Cable. |
| Speaker Connection: |
Single and Dual Speaker output |
| Quiet Tones: |
CTCSS/DCS tone squelch with split tone and custom tone capability |
| Frequency Range: |
136-174 MHz Rx, 144-148 MHz Tx / 400-480 MHz Rx, 420-450 MHz Tx / 222-225 MHz Rx/Tx / 108-136 MHz Rx |
| Package Includes: |
Tri-band VHF/UHF Mobile Radio, Mounting Bracket, Microphone w/ keypad, Bluetooth PTT button and charging cable, free USB Programming cable and downloadable software, 6 ft fused DC power cable, user manual. |
| Certifications: |
FCC Part 90 Certified, FCC ID: T4K-D578UV |
Included In The Box:
- Anytone AT-D578UV III Plus
- Built In Bluetooth Module
- External Bluetooth PTT Key
- Handheld Microphone with Numeric Keypad
- Mobile Mounting Bracket & Hardware
- DC Power Cable & Fuse
- USB Programming Cable

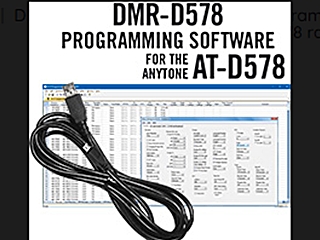

RADIO PROGRAMMING SOFTWARE:
AnyTone AT-D578UV CPS: Click Here To Download Programming Software
AnyTone USB Driver: Click Here To Download Important USB Driver
