Powerwerx 5028-BSS

Name: Powerwerx 5028-BSS
Brand: Powerwerx
SKU: H0-012610
Price: 35.95 USD
Availability: InStock

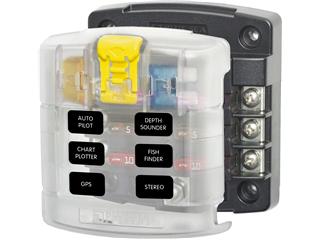

Blue Sea 5028 6 Circuit Blade Fuse Block with Cover

Out Of Stock - Delivery Will Be Delayed!

HRO Discount Price: $35.95^*

*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations

Anaheim, CA

Atlanta, GA

Denver, CO

Milwaukee, WI

New Castle, DE

Phoenix, AZ

Plano, TX

Portland, OR

Sacramento, CA

Salem, NH

Winter Springs, FL

Woodbridge, VA

5028-BSS Description Hide

Blue Sea 5028 6 Circuit Blade Fuse Block with Cover

Quality fuse block accepts standard ATC/ATO fuses. Positive distribution bus with #8-23 stud. 6 circuit design. 100 Amps max per block, 30 Amps max per circuit. Includes storage for 2 spare fuses. Snap-in Cover. 3.32"W x 3.7"H x 1.52"D. Fuses not included.

Description

Positive distribution bus with #8-32 stud
Can be used for 24-hour circuits
Models available with or without a cover
Cover satisfies ABYC/USCG requirements for insulation
Incorporates an easy to open push button latch providing easy access to fuses
Storage for two spare fuses, and recesses for labeled circuit identification
Tin-plated copper buses and fuse clips
Accepts ring or spade type terminals
Accepts ATO and ATC fast acting blade fuses
Voltage Maximum Operating 32V DC
Amperage Maximum Operating (per circuit) 30 Amps
Amperage Maximum Operating (per block) 100 Amps
Screw Terminal #8-32 Screws with captive star lock washer
Mounting #8 Screw (M4)
Fuses sold separately. Labels not included
