SSB-Electronic GmbH 1036-S

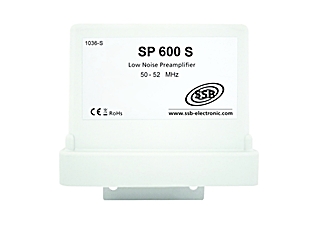

The SP 600 S is a selective receiving preamplifier with transmit / receive switching. It offers a low noise figure and good large-signal behavior.

In the case of low transmission powers, the transmit / receive switchover can be implemented using a built-in HF VOX circuit.

This amplifier is built with a GaAs MMIC of the latest technology on a high quality microwave substrate in SMD technology.

The band pass at the output of the amplifier ensures a good band selection so that all signals that are outside the useful band are effectively suppressed and do not overload the receiver used.

This amplifier has a splash-proof, UV-resistant plastic housing and galvanized mast clamps with stainless steel screws for attachment to the antenna mast.


Technical Data For The SP 600 S:

• Frequency Range: 50-52 MHz
• Noise Rigure (20°C, NF): 0,6 dB
• Gain (+/-1%) (S21): 18 dB
• Max. Switching Capacity with RF VOX: 200 W PEP, 100 W CW, FM, WSJT, FT8
• Transferable Power When Using A Sequencer: 750 W PEP, 400 W CW, FM, WSJT, FT8
• Insertion Loss: 0,04 dB
• Return Loss When Transmitter Is Active: 45 dB
• Input Return Loss (S11): 25 dB
• Output Return Loss (S22): 30 dB
• Output IP3: 24 dBm
• Input IP3: 7 dBm
• Supply Voltage: 12V...15V
• Current Consumption: 130...150 mA
• Mast Diameter: max. 58 mm
• Weight: 540 g
