YAESU FTDX-101D
YAESU-FTDX-101D-Image-1 YAESU-FTDX-101D-Image-2

YAESU FTDX-101D

HF 6M HF SDR TRANSCEIVER ATU 100 WATTS

Regular Price: $3,899.95

Additional Savings

-$500.00  Yaesu Mfr Coupon (Exp:12/03/24)
-$200.00  HRO End Of Summer Savings Sale! (Exp:10/31/24)

HRO Discount Price: $3,199.95*



*After Coupons & Promotions.

Current Stock Status At These Ham Radio Outlet Locations
FTDX-101D Description     Hide

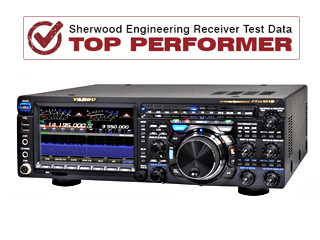

Sherwood Engineering Incorporated #1 Highest Performing Receiver  Receiver Test Data (sherweng.com)


Named after the well-known FT-101, a corner stone in the history of HF Transceivers,

Create the future of HF communications with the birth of the FTDX101.

In Homage to Yaesu Founder - Sako Hasegawa JA1MP

HF/50MHz transceiver

The Ultimate

HF/50MHz transceiver

FTDX101D 100W

We believe that hearing a weak target signal in an environment of close strong interference is the most important feat required of HF DX communications equipment in every era. Raising and meeting the goal is the ultimate mission that Yaesu has challenged for over 60 years.

True Performance:

  • Hybrid SDRs (Narrow Band SDR & Direct Sampling SDR)
  • 2kHz RMDR 123dB+
  • 2kHz BDR 150dB+
  • 2kHz 3rd IMDR 110dB+
  • 400MHz HRDDS (High Resolution Direct Digital Synthesizer)
  • 2kHz Phase Noise -150dBc/Hz
  • VC-TUNE (Variable Capacitor Tune) signal peaking
  • 3DSS (3-Dimensional Spectrum Stream) visual display
  • Narrow band SDR & Direct Sampling SDR
  • Emphasizes Basic Performance and Hybrid SDR Functionality
  • Includes Digital Processing Generated Real-Time Spectrum Scope

FEATURES:

Hybrid SDR Configuration

  • In addition to the Narrow band SDR receiver, that boasts overwhelming Basic Performance, the Hybrid Configuration Digital Processing with Direct Sampling SDR permits inclusion of the superb Real-Time Spectrum Scope. *300Hz and 1.2kHz roofing filters (Optional)

Narrow band SDR

  • Crystal Roofing Filters produce phenomenal Multi-signal characteristics
  • The Down Conversion type receiver construction is similar to the FTDX5000. The first IF frequency is 9 MHz, and a low noise figure dual gate MOS FET, D-quad DBM (Double Balanced Mixer) with excellent intermodulation characteristics, is implemented in the mixer section. Narrow band SDR configuration makes it possible to use the narrow bandwidth crystal roofing filters that have the sharp shape factor. This achieves the amazing multi-signal receiving performance when confronted with the most challenging on-the-air interference situations.
  • In addition to IF down-conversion, The FTDX101 receivers implement the YAESU legendary powerful RF Front-Ends, outstanding low-noise Local Oscillators, roofing filters with sharp shape factors, and the latest circuit configurations that we carefully selected for all circuit elements. Consequently, the proximity BDR (Blocking Dynamic Range) in the 14 MHz band reaches 150 dB or more, the RMDR (Reciprocal Mixing Dynamic range) reaches 123 dB or more, and the 3rd IMDR (third-order Intermodulation Dynamic Range) reaches 110 dB or more.


Narrow band SDR + Direct Sampling SDR

  • Emphasizes Excellent Receiver Performance and Hybrid SDR Functionality
  • Digital Processing Generated Real-Time Spectrum Scope
  • The Narrow band SDR receiver removes strong out of band signals by using a superheterodyne method, with narrow band roofing filters which significantly attenuates unwanted out of band frequency components, and the wanted signals within the passband are converted to digital by a high resolution 18-bit A/D converter and sent to an FPGA (Field Programmable Gate Array) for signal processing.
  • The FT DX 101 series uses a hybrid SDR configuration that integrates a direct sampling SDR receiver in order to view the entire band status in real time, with the excellent dynamic receiver performance achieved by the narrow band SDR receiver circuit.
  • By using this hybrid SDR design, the overall performance of the entire FTDX101 receiver system is improved. The Direct Sampling SDR driving the real time Spectrum display with its large dynamic range enables the weakest signal to be observed on the display when it appears and the Narrow Band SDR enables that signal to be selected, filtered and then decoded.
  • If there is powerful AM station near your location or in challenging operating situations where there are a lot of strong signals in the band from Contests, DX-pedition activities, those signals outside the pass band can be attenuated by the very effective roofing filter in the front stage of the A/D converter. This reduces the signal load on the A/D converter which is a bottleneck from the viewpoint of the entire receiving circuit. Therefore, interference is reduced making it is possible to continue to operate even under such difficult conditions.


Truly Quiet and Clear Reception

  • Ultra Low-Noise Local Oscillator System; 400MHz HRDDS (High Resolution Direct Digital Synthesizer)
  • The C/N ratio (signal-to-noise ratio) of the local signal injected into the 1st mixer is an important factor in improving the proximity multi-signal characteristics. The local circuit of the FTDX101 series uses the 400 MHz HRDDS (High Resolution Direct Digital Synthesizer) method that was used in the FTDX5000. This circuit configuration is different from a generic PLL that generates a local signal. Creating the local signal by directly dividing the high frequency of 400 MHz, the theoretical PLL lockup time becomes zero, and C/N deterioration by the lockup time does not occur.
  • The significant improvement of the C/N characteristic by directly dividing the frequency contributes dramatically to reduce the noise in the entire receiver stage, and also improve the BDR (Blocking Dynamic Range) characteristic in strong signals proximity.
  • In the FTDX 101 series, in addition to the adoption of the 400 MHz HRDDS, the latest circuit configurations that reduced noise, and carefully selected components are used. As a result, the phase noise characteristic of the local signal achieves an excellent value of -150 dBc/Hz or less at 2kHz separation.
  • This low-noise, high-quality local signal contributes significantly to the multi-signal and the ultra-close signal proximity (such as a few hundred hertz) characteristics.

Unparalleled -70 dB Maximum Attenuation VC-Tune

  • Newly developed VC-Tune RF Preselector with high precision stepping motor drive provides outstanding attenuation characteristics


Frequency automatic adjustment RF Preselector VC-Tune

  • In the FTDX101 series, a next-generation RF preselector VC-Tune further improves the high-performance RF μ (mu)-Tuning system adopted in FTDX9000. Using a remarkable miniaturization design while producing unparalleled characteristics and maximum attenuation of -70 dB.
  • Newly developed VC-tune circuit drives a variable capacitor (VC) with a high precision stepping motor and achieved remarkable miniaturization over μ-tuning system.
  • VC-Tune has no annoying steps or switching relays by continuously covering the band with a variable capacitor driven by a high-precision stepping motor following the frequency. The conventional preset method of switching coils and capacitors with relays is eliminated.
  • When there are multiple strong signals in the band, press the "VC TUNE" key and turn the MPVD (Multi-Purpose VFO Outer Dial) ring on the VFO dial to activate the high-precision stepping motor to adjust the variable capacitor. Fine tune to the optimum point that attenuates the strong signal in the band while operating the VFO dial.
  • VC-Tune stores the last tuning point for each band, so when broadcast-like signals are periodically transmitted on the same frequency, that frequency can always be attenuated by setting the VC-Tune once.

The Highest Transmit Signal Purity

  • High-Quality transmission with outstanding phase noise characteristics

Transmit Final Stage produces the Highest Signal Purity

  • The excellent C/N characteristics provided by the 400MHz HRDDS (High Resolution Direct Digital Synthesizer) used in the local oscillator circuit also contributes significantly to the transmitter section. In a generic circuit, noise or distortion may occur depending on the circuit configuration and the components, up to the final stage that is producing the transmit signal, even if the local signal is of high quality. In the FTDX101, a thorough examination of each element up to the final TX stage was made. The clock that divides and distributes the local signal from the 400MHz HRDDS circuit to each block, as well as the FPGA, D/A converter, the final power amplifier etc., and carefully selecting the latest circuit configurations to improve the C/N characteristics of the entire transmitter block. The transmit signal of the FTDX101 is directly generated from a 16-bit D/A converter without passing through a mixer circuit, therefore distortion and noise are significantly suppressed.
  • As a result, high-quality local signal characteristics are maintained without degradation to the final stage, and the transmission phase noise characteristics achieve -150 dBc/Hz at 2kHz separation. FTDX101 transceiver user will appreciate the finest performance with a high-purity transmission signal.


New Generation Scope Display 3DSS

  • Intuitively grasp changes in the strength of the signals
  • Newly developed 3DSS (3-Dimentional Spectrum Stream) system
  • in addition to a conventional Waterfall display

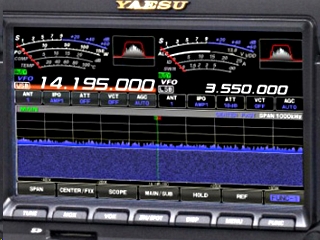

7-inch TFT Color Touch Panel Display

  • Size: 7-inch Wide
  • Resolution: 800 x 480 pixels

ABI (Active Band Indicator) & MPVD (Multi-Purpose VFO Outer Dial)

  • Deliver Superior Operability and Visibility plus Introduce Numerous Functions


Front Panel Design Emphasizes Solid Superior Touch and Operability

  • Primary important operation functions such as the Main VFO dial, VC-TUNE, WIDTH/SHIFT are arranged near the center of the pane for easy access.
  • Band select keys are placed as a row of ABI (active band indicator) at the top of the VFO dial, with your operating efficiency and comfort.
  • Even with a Large 7-inch Touch Panel Display, the panel layout emphasizes quick visibility and operability as a First Priority.


ABI (Active Band Indicator)

  • ABI is arranged as the band select key in the horizontal a row at the top of VFO dial.
  • When the band selected as MAIN Band, the LED indicates in white, and when the band selected by SUB band, the LED indicates in blue. At the status of transmission, the LED turns red so you can instantly confirm which VFO is transmitting.
  • In addition, since the orange LED lights up when you press and hold the band key, you can use it to display a band that has an antenna connected or to display a band operated in DX-pedition mode as a memo. Below the band key is a key for selection between transmission and reception of the MAIN and SUB band, and below that, there is a switching key for using the VFO knob on the MAIN or SUB tuning, so, even when the operating split using both MAIN and SUB bands at the same time, the band control can be performed smoothly, and so tuning the wrong band by mistake is reduced.


MPVD (Multi-Purpose VFO Outer Dial)

  • The MPVD is a large high-grade aluminium multifunctional ring around the outside of the VFO dial. The ring allows control of SUB VFO frequency dial, VC-TUNE, Clarifier and C/S (custom select function). The MPVD is a handy dial that allows you to adjust important functions in ever-changing HF communications without taking your hand off the VFO. The ring has the traditional Yaesu outstanding smooth and solid feeling when used.


PC Remote Control Software to Expand the Operating Range

  • Even from a distance, Dual Band-Scope Available Comfortable Operation utilizing the advantage of Hybrid SDR


Remote operation connected to LAN or Internet

  • PC control software performed remote operation of the transceiver from a remote location via the LAN or the Internet is available. (Requires optional external LAN unit)
  • In remote operation, in addition to the transceiver basic operation, it is compatible with DUAL-BAND scope and versatile displays, enabling comfortable operation. Also, you can enjoy various usages such as monitoring the band condition on a large display at a place away from the shack by connecting to a home LAN.
  • By communicating of Transmit/receive voice, RF scope, AF scope and CAT command to the transceiver, band status monitor by scope display, various filter settings, interference reduction function etc., can be easily set from PC, and possible to perform comfortable communication.
    Manufacturer's Website
    Product Website

FTDX-101D Accessories and Related Items
MARS MOD FTDX-101D/MP

MARS MOD FTDX-101D/MP

MARS MODIFICATION OF FTDX-101D/MP

$79.95
INCLUDE
M-100 YAESU

M-100 YAESU

Dual Element Microphone W/Dynamic and Condenser Elements

$439.95
INCLUDE
FP-1023A

FP-1023A

Switching Regulator Power Supply - 13.8 Volts DC - 23 Amps - 110 / 220 Volts AC Input

$149.95
INCLUDE
FP-1030A

FP-1030A

Linear DC Power Supply - 13.8 Volts - 30 Amps - 120 Volts AC Only

$229.95
INCLUDE
YH-77STA

YH-77STA

Lightweight Stereo Headphones

$84.95
INCLUDE
FC-40

FC-40

Automatic Antenna Tuner - Wide Impedance - for FT-857 / FT-897 - Includes Cables

$274.95
INCLUDE
FH-2

FH-2

Remote Keypad for FT-710 / FTdx-10 / FTdx-101 and others

$94.95
INCLUDE
CC1XLRYB

CC1XLRYB

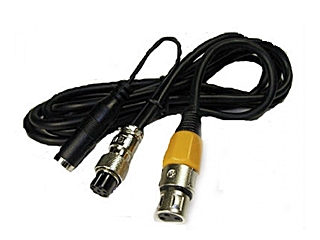

Yaesu Mic Adapter - 3 Pin XLR to 8 Pin Foster - Balanced to Prevent Ground Loops

$39.95
INCLUDE

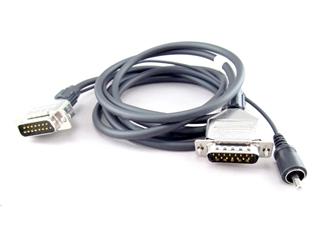

CT-178

CT-178

Quadra Amplifier Control Cable for FTdx-3000 / FTDX101D/MP

$74.95
INCLUDE
M-1 Reference Microphone

M-1 Reference Microphone

M-1 Yaesu Reference Microphone

$659.95
INCLUDE
SanDisk Ultra 32GB

SanDisk Ultra 32GB

SanDisk Ultra Class 10 32GB microSD micro SDHC SD UHS-I U1 TF Flash Memory Card

$16.95
INCLUDE
Yaesu FTDX101D Cover

Yaesu FTDX101D Cover

YAESU FTDX-101D RADIO COVER

$59.95
INCLUDE
SSM-75G

SSM-75G

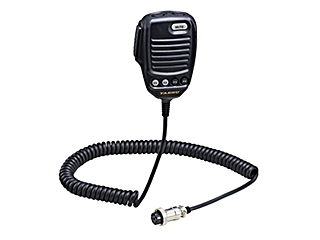

Replacement Hand Microphone (Same As Supplied)

$54.95
INCLUDE

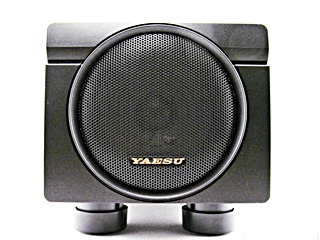

SP-101

SP-101

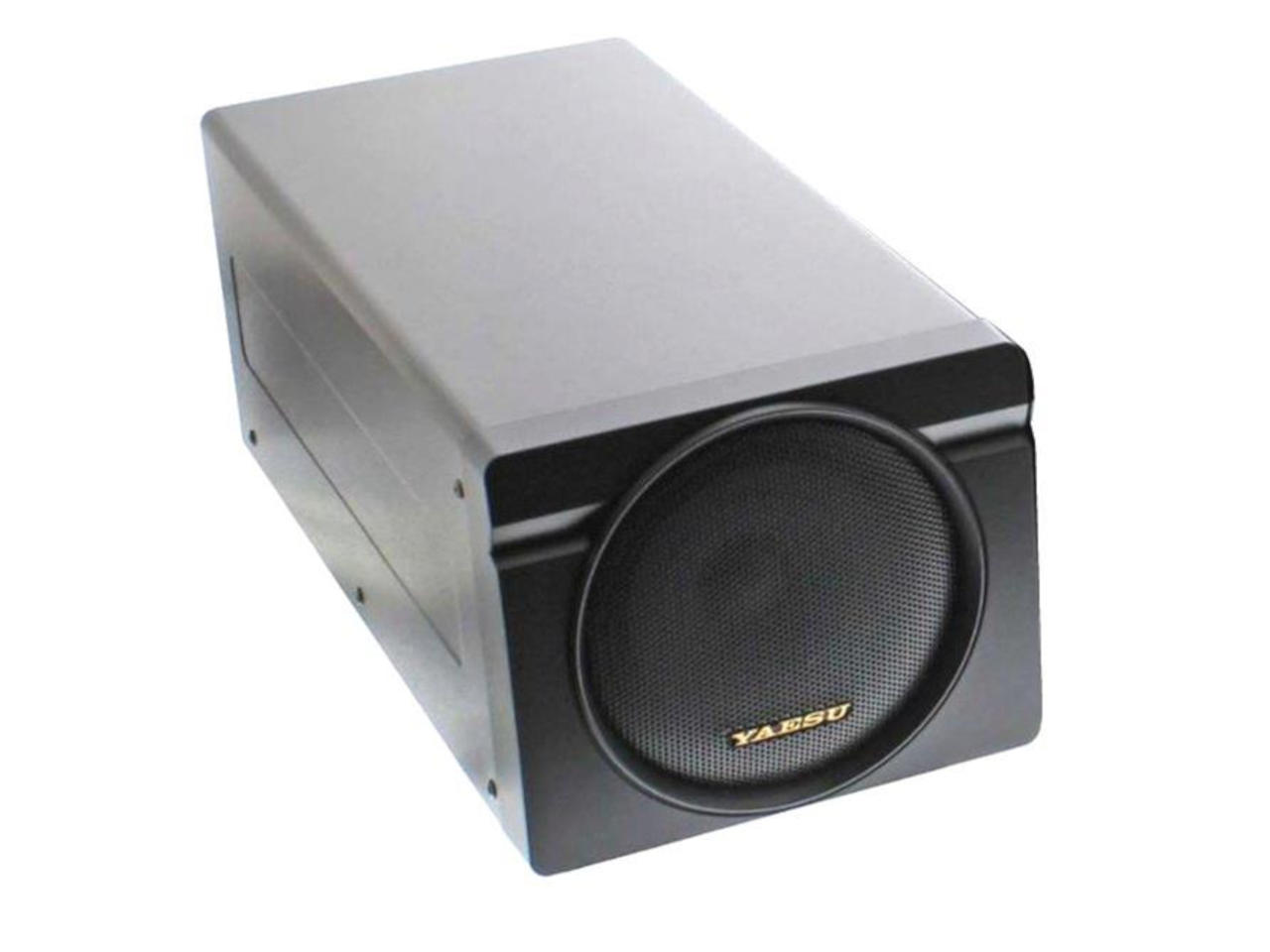

Desktop External Speaker

$209.95
INCLUDE
VCT-101

VCT-101

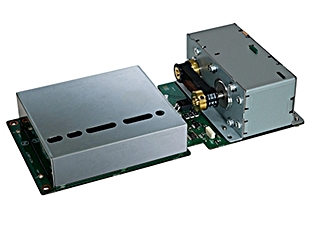

VC-TUNE Unit ** FACTORY INSTALL ONLY AT YAESU! **

$329.95
INCLUDE
XF-128CN

XF-128CN

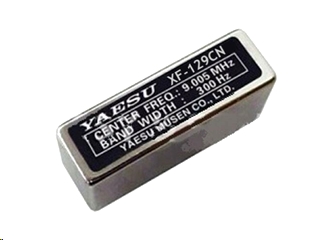

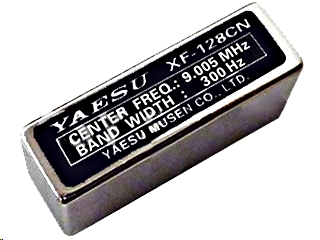

9.005MHz/300Hz CW Narrow Crystal Filter (MAIN) - Factory Install Only At Yaesu!

$259.95
INCLUDE
XF-129CN

XF-129CN

8.900MHz/300Hz CW Narrow Crystal Filter (SUB) - Factory Install Only At Yaesu!

$259.95
INCLUDE
XF-128SN

XF-128SN

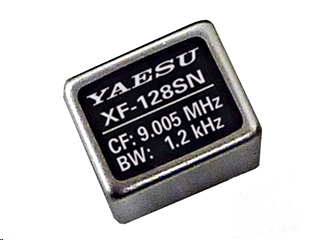

9.005MHz/1.2kHz SSB Narrow Crystal Filter (MAIN) - Factory Install Only At Yaesu!

$259.95
INCLUDE

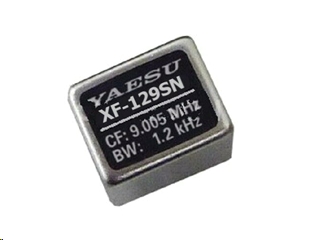

XF-129SN

XF-129SN

8.900MHz/1.2kHz SSB Narrow Crystal Filter (SUB) - Factory Install Only At Yaesu!

$259.95
INCLUDE
NIFTY-FTdx101D/MP

NIFTY-FTdx101D/MP

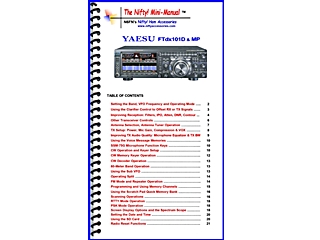

Mini Manual for Yaesu FTdx-101D / FTdx-101MP

$29.95
INCLUDE
SCU-LAN10 LAN-Unit

SCU-LAN10 LAN-Unit

Network Remote Control For FTdx-101 Series

$289.95
INCLUDE
HRO No Photo

EH068H90D

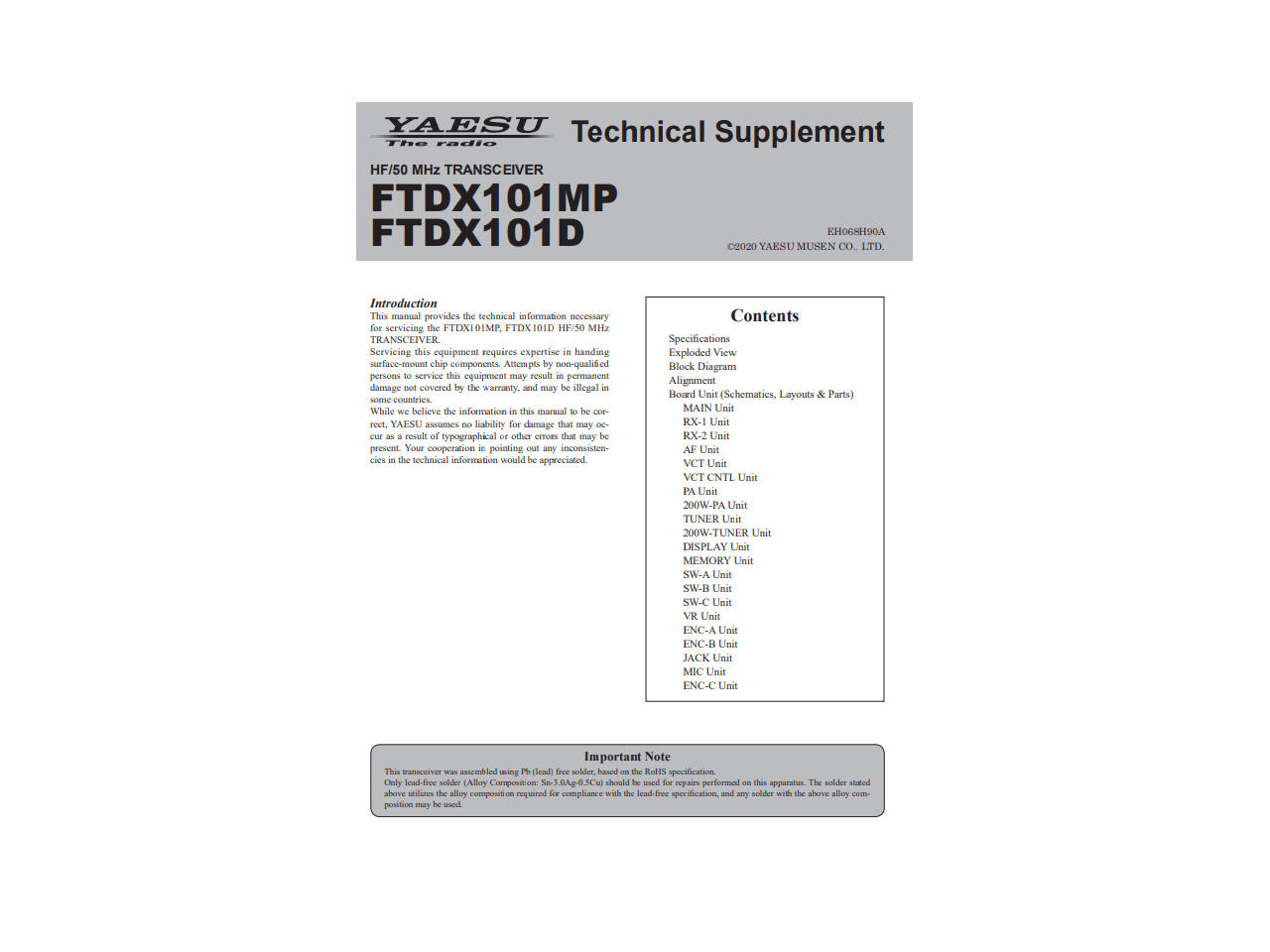

Service Manual For FTDX-101MP/D

$19.95
INCLUDE
FPS-101 CS2591704

FPS-101 CS2591704

FPS-101 Power Supply With Built In Speaker - Special Order

$999.95
INCLUDE
YPS-DX101-U

YPS-DX101-U

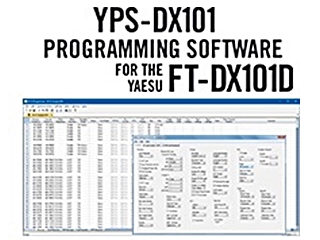

Programming Software Only for the Yaesu FT-DX101D and FT-DX101MP
